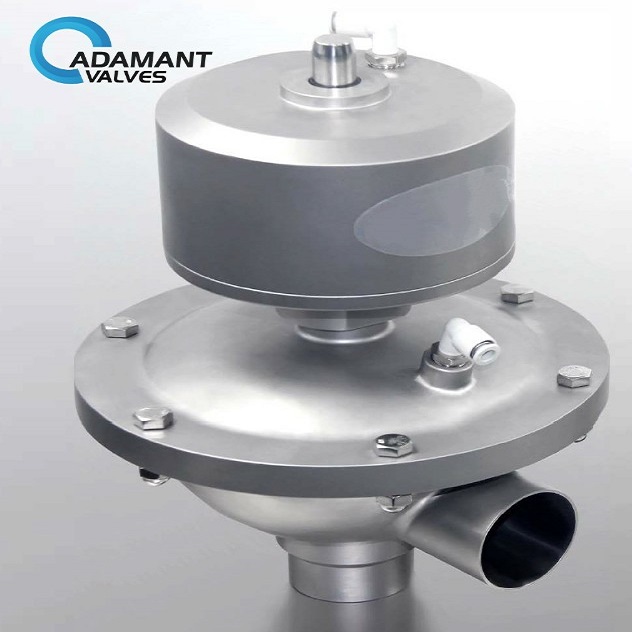

AV-9T Sanitary Tri-Clamp Constant Pressure Valve with Superchanger

Availability : In stock
Working temperature -10 to 150 °C
Working pressure 8 bar
Body material 304/316L
Sealing material EPDM + PTFE (FDA177.2600)
Connection Clamp, thread, welding
Finishing Ra< 0.6µm
Standards ISO, DIN, SMS, RJT

Sanitary Tri-Clamp Constant Pressure Valve with Superchanger Description

The Sanitary Tri-Clamp Constant Pressure Valve with Supercharger is operated by compressed air, which automatically runs without sensor on piping system or other auxiliary instruments, and only one compressed air pressure regulating valve that maintains pressure stability can work normally.

  • Constant Pressure Valve-V Type:

Constant inlet pressure.

The valves open when the pressure of the conveying medium is higher than the set pressure.

When the pressure of the conveying medium decreases, the valve changes the flow accordingly.

The valves are closed when the conveying medium is insufficient.

  • Constant Pressure Valve-A Type:

Constant outlet pressure.

The valves are closed when the pressure of the conveying medium is higher than the set pressure.

When the pressure of the conveying medium decreases, the valve changes the flow accordingly.

The valves open when the conveying medium is insufficient.

Sanitary Tri-Clamp Constant Pressure Valve

Sanitary Tri-Clamp Constant Pressure Valve With Superchanger Specifications

Size Custom
Working temperature -10 to 150 °C
Working pressure 8 bar
Max working pressure 12 bar Superchanger (option)
Body material 304/316L
Sealing material EPDM + PTFE (FDA177.2600)
Connection Clamp, thread, welding
Finishing Ra< 0.6µm
Standards ISO, DIN, SMS, RJT

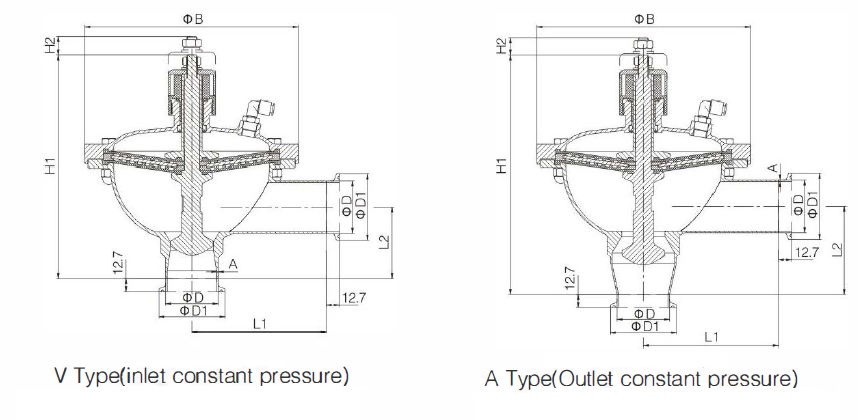

pressure valve

Size D D1 A B L1 L2 H1 H2
V Type 1.5″ 38.1 50.5 1.5 206 130 62 215 18
2″ 50.8 64 1.5 206 130 69 215 18
2.5″ 63.5 77.5 2 206 130 69 215 18
A Type 1.5″ 38.1 50.5 1.5 206 130 78 230 18
2″ 50.8 64 1.5 206 130 85 230 18
2.5″ 63.5 77.5 2 206 130 85 230 18

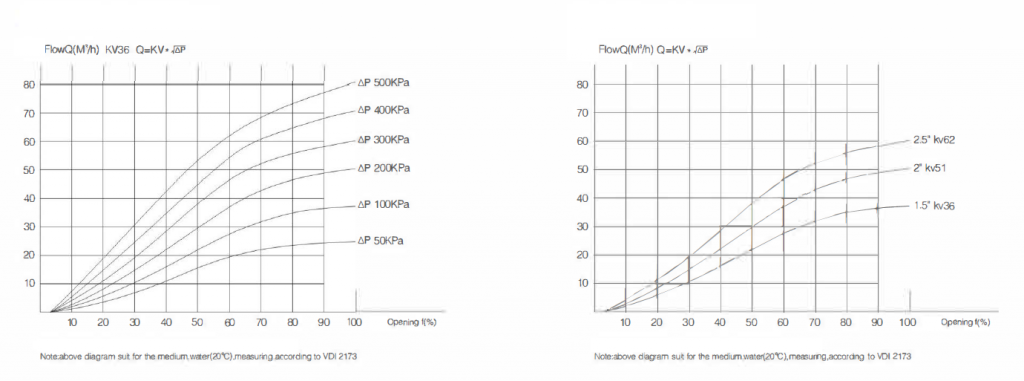

constant pressure valve

Sanitary Tri-Clamp Constant Pressure Valve With Superchanger Options

  • Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)
  • Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.
  • Pressure range adjustable (by calibrating spring).

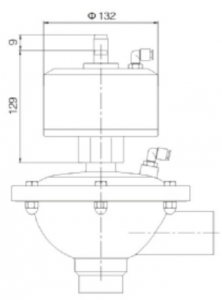

superchanger

With superchanger

Sanitary Tri-Clamp Constant Pressure Valve With Superchanger Applications

  • The safety valve is used to protect pipelines, pumps from overpressure
  • Pressure relief design prevents operation danger and equipment brake down
  • With a pure stainless-steel design, the valve is the best choice for protecting equipment in dairy, food, beverage, pharmaceutical, and fine chemical industries.
