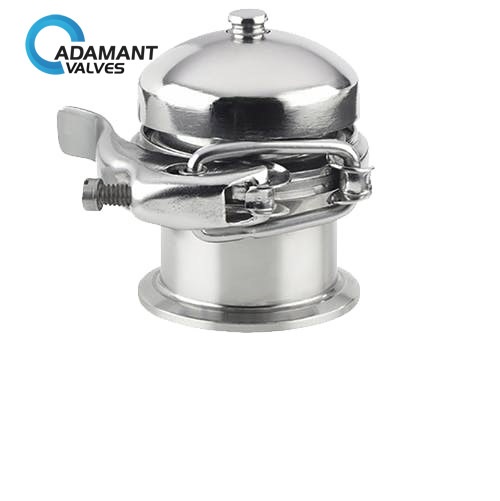

AV-9VB Sanitary Vacuum Breaker

Availability : In stock

Materials:

Product Wetted Parts	Stainless Steel 316
O-ring	Buna, other options available
Plug	Teflon

Dimensional Data:

Overall Height: 1.625 inch

Special characteristics:

Available in 2-inch Tri-Clamp connection
Line pressure positions the stem and o-ring
Valve is positioned at the high point of the piping
Not clean-in-place (CIP) capable, must be clean-out-of-place (COP)
3-A compliant

Sanitary Vacuum Breaker Description

Vacuum Breakers provide relief from vacuum conditions in process lines. When used as a Vacuum Breaker, it guards against siphoning and backflow, reducing the risk of product contamination and quality issues as well as protecting sensitive equipment. The valve’s quick clamp-style assembly and simple design allow for the working parts to be rotated, converting the valve from a Vacuum Breaker to an air eliminator.

Sanitary Vacuum Breaker Specifications

Materials:

Product Wetted Parts	316
O-ring	Buna, other options available
Plug	Teflon

Dimensional Data:

Overall Height: 1.625 inch

Sanitary Vacuum Breaker Applications

Sanitary Vacuum Breakers are used at the high point of a high-temperature short-time (HTST) pasteurization system to prevent contamination of pasteurized products due to backflow.
