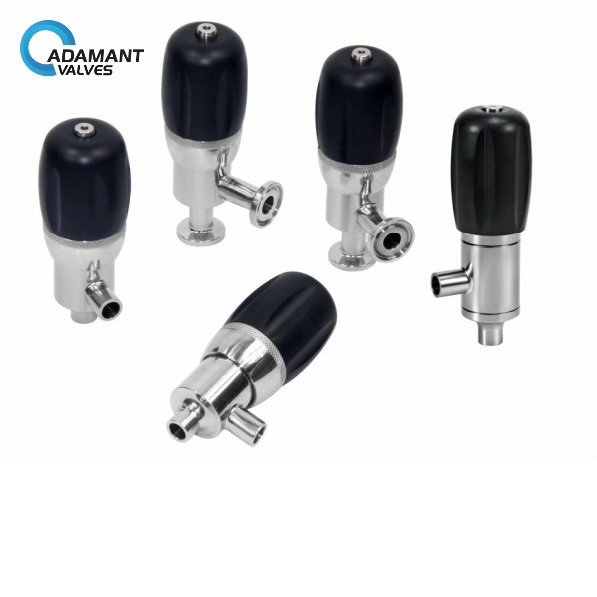

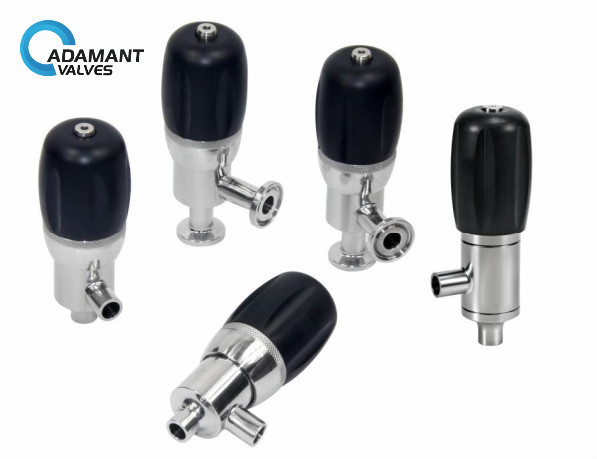

AV-9M Sanitary Mini Safety Valve with Tri-Clamp

Availability : In stock

Specifications

Size	1/2”-3/4”
Max working temperature	121°C
Working pressure	0-3bar/ 0-6bar
Body material	304/316L
Sealing material	EPDM, NBR, FPM
Connection	Clamp, welded, threaded, flange
Standards	DIN, SMS, RJT, IDF, 3A

Sanitary Mini Safety Valve with Tri-Clamp Description

The Sanitary Mini Safety Valve with Tri-clamp has been widely used in the industry and our daily life. Adamant Valves is a global sanitary valves manufacturer and valves supplier. As one of the leading valves manufacturers, Adamant Valves provides customers with high-precision Sanitary Mini Safety Valve with Tri-clamp at a very competitive price.

Sanitary Mini Safety Valve with Tri-Clamp Specifications

Size	1/2”-3/4”
Max working temperature	121°C
Working pressure	0-3bar/ 0-6bar
Body material	304/316L
Sealing material	EPDM, NBR, FPM
Connection	Clamp, welded, threaded, flange
Standards	DIN, SMS, RJT, IDF, 3A

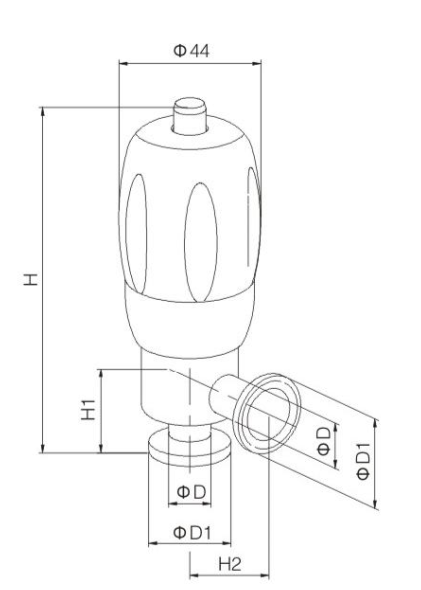

Size	D	D1	H	H1	H2
DN10	12	34	128.5	36.5	38
DN15	18	34	128.5	36.5	38
1/2″	12.7	25.4	116.5	24.5	30

Sanitary Mini Safety Valve with Tri-Clamp Options

– Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)

– Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.

– Pressure range adjustable (by calibrating spring).

Sanitary Mini Safety Valve with Tri-Clamp Applications

The safety valve is used to protect pipe lines, pumps from over pressure
Pressure relief design prevents operation danger and equipment brake down
With pure stainless-steel design, the valve is the best choice for protecting equipment in diary, food, beverage, pharmaceutical and fine chemical industries.
