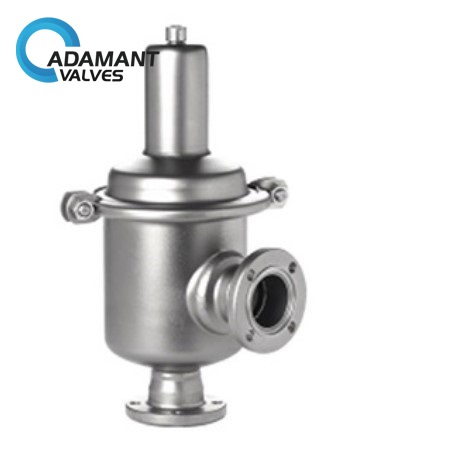

AV-9HP Sanitary High Purity Pressure Reducing Valve

Availability : In stock

Media: steam, liquid, gas

Size: 1″-3″, DN25-DN80

Max Temp. : 180℃

Nominal pressure: PN2.5-10

Inlet pressure: 8bar

Outlet pressure: 0.3-5bar

KV Value: 4-70m3/h

Connection mode: Clamps, welding, thread, Flange

SKU: AV-9HP Category:

Sanitary High Purity Pressure Reducing Valve Description

Sanitary High Purity Pressure Reducing Valve is a pressure control valve that provides precise control and easy installation and maintenance. It controls the valve after pressure without the need for a pneumatic or electric control element. It is a two-seat diaphragm-controlled spring-loaded proportional control valve that is mainly used in food, beverage, brewery, pharmaceutical, chemical, and other industries.



Sanitary High Purity Pressure Reducing Valve Applications

Sanitary High Purity Pressure Reducing Valve is mainly used in food, beverage, brewery, pharmaceutical, chemical, and other industries.
