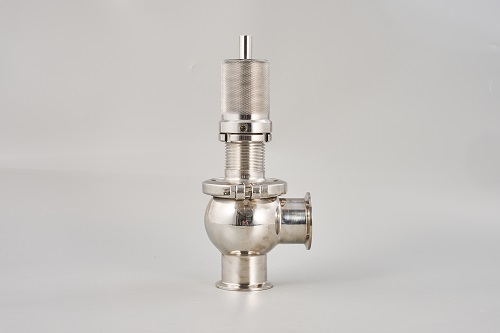

AV-9S Sanitary Safety Pressure Relief Valve

Availability : In stock

Specifications:

Reference No. : AV-9S

Body Material: AISI-316L

Sizes: 1″, 1 1/2″, 2″, 3″, 4″

Seal: EPDM

Options: Silicone, Viton (FPM)
All seals comply with FDA 21CFR177.2600.

Max. pressure setting: 145psi, others upon request.

Specifications:

Reference No. : AV-9S

Body Material: AISI-316L

Sizes: 1″, 1 1/2″, 2″, 3″, 4″

Seal: EPDM

Options: Silicone, Viton (FPM)
All seals comply with FDA 21CFR177.2600.

Max. pressure setting: 145psi, others upon request.

Sanitary Safety Valve

Application of SAM Sanitary Safety Pressure Relief Valves:

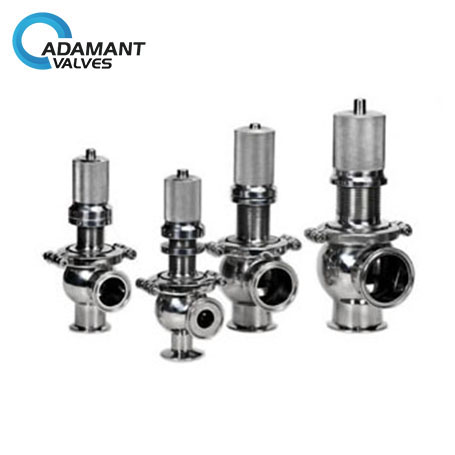

AV-9 series sanitary stainless steel safety valve, also known as “pressure relief valve”, is used to control over-pressurization in a process piping system.

Working principle:
When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port. The valve will remain open until the line pressure decreases to a value lower than the set value.

Adamant Valves is a trusted supplier of various sanitary valves. We offer high-quality sanitary safety pressure relief valves at a competitive price.
