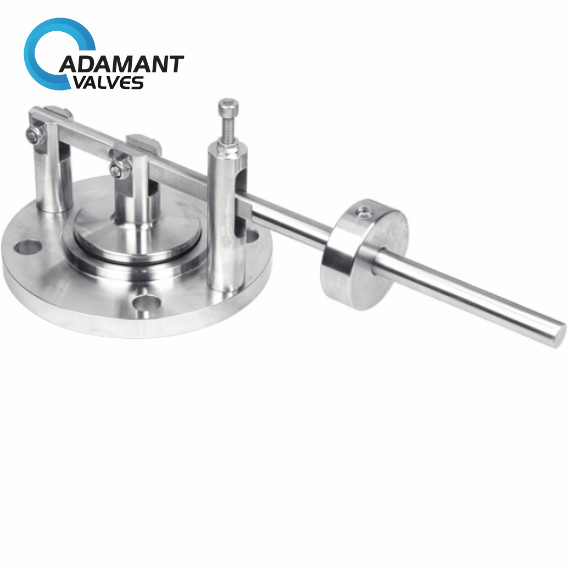

AV-9MA Sanitary Manual Air Relief Valve with Lever

Availability : In stock

Specifications:

Size	1”-3”(DN25-DN80)
Max. Working temperature	120 °C
Max. Working pressure	10 bar, 116 psi
Body material	SS304 OR SS316L
Sealing material	EPDM, NBR, FPM
Connection	Flange, clamp, welded
Standards	DIN, INCH, IDF, 3A, SMS
Certificate	FDA, CE

* Minimum Order Quantity (MOQ): 10 pieces for sizes below 2"; 5 pieces for sizes 2" and above.

Sanitary Manual Air Relief Valve with Lever Description

Sanitary Manual Air Relief Valve with Lever is generally installed vertically on top of pipes or vessels. Adamant Valves is a global Sanitary Manual Air Relief Valve with Lever manufacturer & supplier, providing customers with high-precision Sanitary Manual Air Relief Valve with Lever at a very affordable price.

Sanitary Manual Air Relief Valve with Lever Specifications

Size	1”-3”(DN25-DN80)
Max. Working temperature	120 °C
Max. Working pressure	10 bar, 116 psi
Body material	SS304 OR SS316L
Sealing material	EPDM, NBR, FPM
Connection	Flange, clamp, welded
Standards	DIN, INCH, IDF, 3A, SMS
Certificate	FDA, CE

Sanitary Manual Air Relief Valve with Lever Applications

The applications of the Sanitary Manual Air Relief Valve with Lever are as following:

Used to protect pipe, pump from overpressure
Prevent operation danger an equipment breakdown due to pressure
With sanitary design stainless steel, the valve is the best choice for protection equipment in dairy, food, beverage, and chemical industries.
