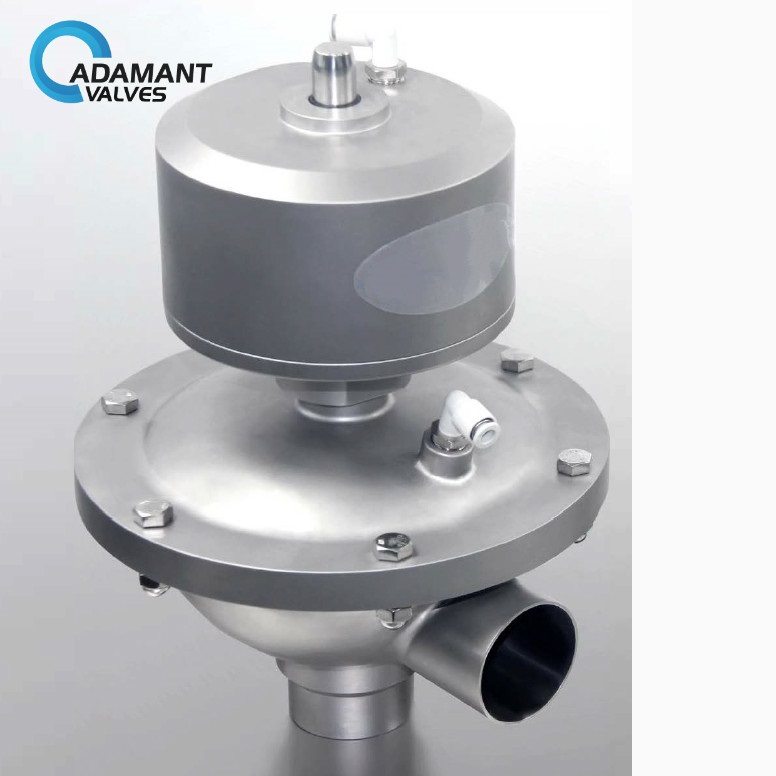

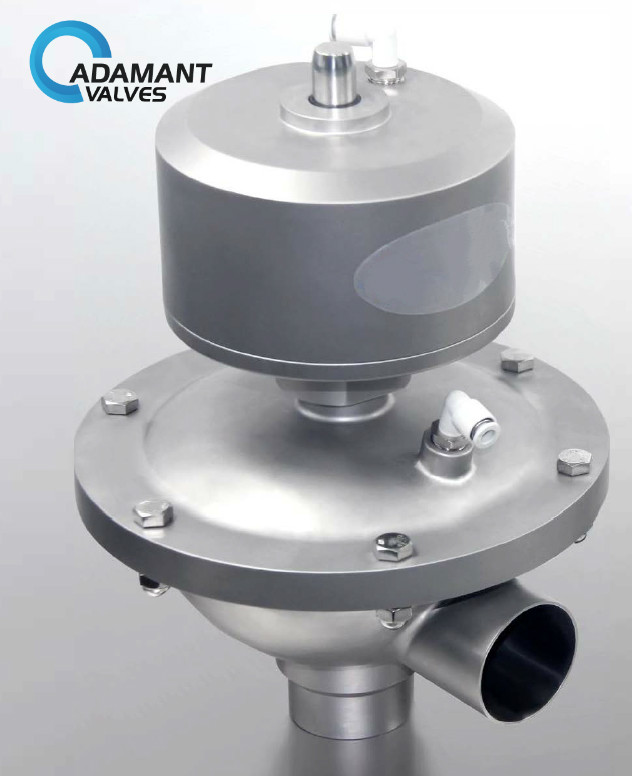

AV-9T Sanitary Tri-Clamp Constant Pressure Valve with Superchanger

Availability : In stock

Specifications

Size Custom
Working temperature -10 to 150 °C
Working pressure 8 bar
Body material 304/316L
Sealing material EPDM + PTFE (FDA177.2600)
Connection Clamp, thread, welding
Finishing Ra< 0.6µm
Standards ISO, DIN, SMS, RJT

Sanitary Tri-Clamp Constant Pressure Valve with Superchanger Description

The Sanitary Tri-Clamp Constant Pressure Valve with Superchanger has been widely used in our everyday life and industry. Founded in 2002, Adamant Valves is a global sanitary valves manufacturer and valves supplier. As one of the leading valves manufacturers, Adamant Valves offer customers high-precision Sanitary Tri-clamp Constant Pressure Valve with Superchanger at a very affordable price.

constant pressure valve

 Sanitary Tri-Clamp Constant Pressure Valve with Superchanger Specifications

Size Custom
Working temperature -10 to 150 °C
Working pressure 8 bar
Body material 304/316L
Sealing material EPDM + PTFE (FDA177.2600)
Connection Clamp, thread, welding
Finishing Ra< 0.6µm
Standards ISO, DIN, SMS, RJT

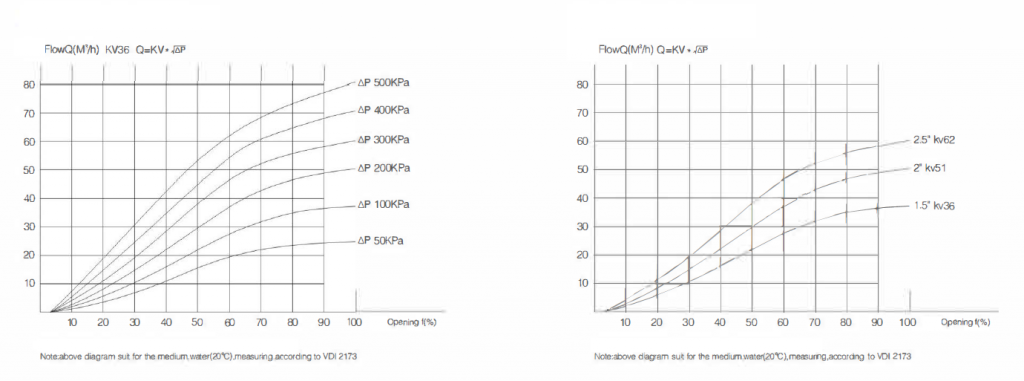

constant pressure valve

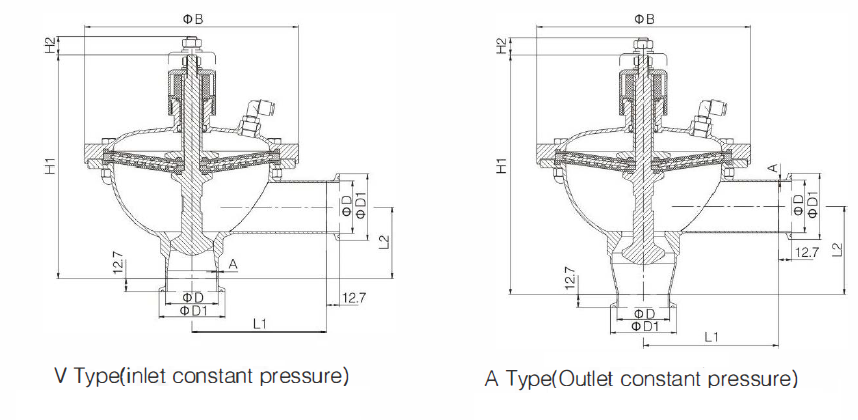

Size D D1 A B L1 L2 H1 H2
V Type 1.5″ 38.1 50.5 1.5 206 130 62 215 18
2″ 50.8 64 1.5 206 130 69 215 18
2.5″ 63.5 77.5 2 206 130 69 215 18
A Type 1.5″ 38.1 50.5 1.5 206 130 78 230 18
2″ 50.8 64 1.5 206 130 85 230 18
2.5″ 63.5 77.5 2 206 130 85 230 18

constant pressure valve

Sanitary Tri-Clamp Constant Pressure Valve with Superchanger Options

–        Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)

–        Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.

–        Pressure range adjustable (by calibrating spring).

Sanitary Tri-Clamp Constant Pressure Valve with Superchanger Applications

–        The safety valve is used to protect pipe lines, pumps from over pressure

–        Pressure relief design prevents operation danger and equipment brake down

–        With pure stainless-steel design, the valve is the best choice for protecting equipment in diary, food, beverage, pharmaceutical and fine chemical industries.
