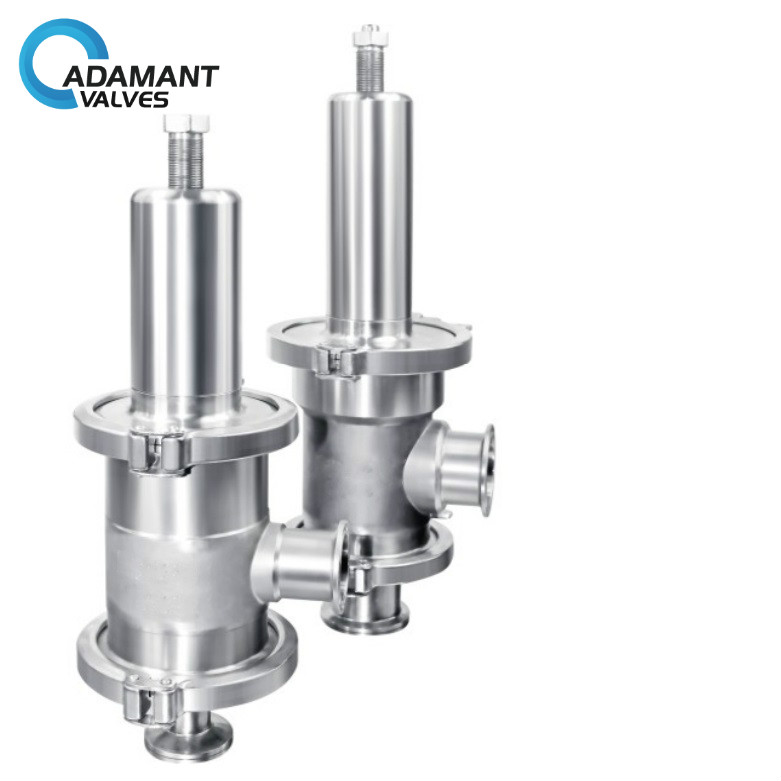

AV-9P Sanitary High Purity L-Type Pressure Reducing Valve

Availability : In stock

Specifications:

Size 1”-3”, DN25-DN80
Normal-pressure PN 2.5-10
Inlet pressure 8 bar
Outlet pressure 0.3-5 bar
Kv 4-70 m3/h
Max. temperature 180 °C
Medium Steam, gas, liquid
Connection Clamp, screw thread, flange, welded

High Purity Pressure Reducing Valve Description

High Purity Pressure Reducing Valve has been widely used in industry and our everyday life. Founded in 2002, Adamant Valves is a global High Purity Pressure Reducing Valve manufacturer & supplier. We provide our customers with high-precision High Purity Pressure Reducing Valves at a very competitive price.

High Purity Pressure Reducing Valve Specifications

Size 1”-3”, DN25-DN80
Normal pressure PN 2.5-10
Inlet pressure 8 bar
Outlet pressure 0.3-5 bar
Kv 4-70 m3/h
Max. temperature 180 °C
Medium Steam, gas, liquid
Connection Clamp, screw thread, flange, welded

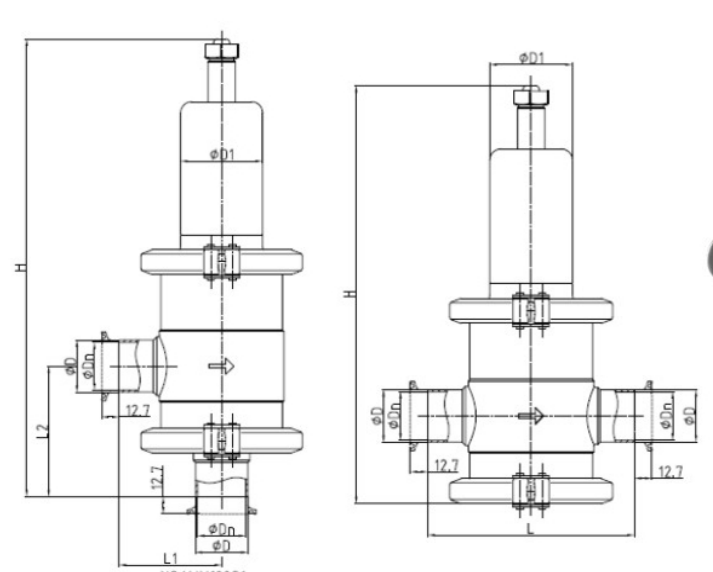

high purity pressure reducing valves

SIZE D Dn D1 H L1 L2
1″ φ25.4 φ22.4 φ60 336 75 96
1.5″ φ38.1 φ35.1 φ60 336 75 96
2″ φ50.8 φ47.8 φ60 360 75 102
2.5″ φ50.8 φ47.8 φ60 360 75 102

High Purity Pressure Reducing Valve Applications

High Purity Pressure Reducing Valves can be used in the following fields:
