AV-3F Sanitary Flange Connected Check Valves with Welded Ends
Availability :
In stock
Specifications
| Size | 1”, 1.5”, 2”, 2.5”, 3”, 4” |
| Max. working temperature | 140°C |
| Max. working pressure | 10 Bar |
| Body material | 316L/304 |
| Sealing material | VITON, SILICON, EPDM |
| Connection | Welded, thread, clamp |
| Finishing | Ra<0.8μm |
| Standards | ISO/DIN/ASME BPE/3A/BS/GB |
Sanitary Flange Connected Check Valves with Welded Ends Description
The Sanitary Flange Connected Check Valves with Welded Ends is very useful and has been widely used in industry and our everyday life. Founded in 2002, Adamant Valves has become a global sanitary valves manufacturer and valves supplier. As one of the leading valves manufacturers, Adamant Valves provides customers with high-precision Sanitary Flange Connected Check Valves with Welded Ends at a very affordable price.
Sanitary Flange Connected Check Valves with Welded Ends Specifications
| Size | 1”, 1.5”, 2”, 2.5”, 3”, 4” |
| Max. working temperature | 140°C |
| Max. working pressure | 10 Bar |
| Body material | 316L/304 |
| Sealing material | VITON, SILICON, EPDM |
| Connection | Welded, thread, clamp |
| Finishing | Ra<0.8μm |
| Standards | ISO/DIN/ASME BPE/3A/BS/GB |
| Size | L | A | B | T |
| 0.5″ | 100 | 12.7 | 9.4 | 1.65 |
| 0.75″ | 100 | 19.1 | 15.8 | 1.65 |
| 1″ | 112 | 25.4 | 22.1 | 1.65 |
| 1.5″ | 115 | 38.1 | 34.8 | 1.65 |
| 2″ | 115 | 50.8 | 47.5 | 1.65 |
Sanitary Flange Connected Check Valves with Welded Ends Options
– Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)
– Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.
– Pressure range adjustable (by calibrating spring).
Sanitary Flange Connected Check Valves with Welded Ends Applications
- Food industries
- Personal care industries
- Pharmaceuticals industries
Be the first to review “AV-3F Sanitary Flange Connected Check Valves with Welded Ends”
Related Products
AV-3A Sanitary Air Blow Check Valve (Discontinued)
(Discontinued) Technical parameters Part Number Description 1 1/2" 2" 2 1/2" 3" 4" 4 1/2" EG62A-6L "A" Adapter Length 2.500 2.503 2.500 2.500 2.500 2.500 EG62A-6L "A" Adapter O.D. 1.984 2.516 3.047 3.579 4.682 5.125 EG62B-6L "B" Adapter Length 4.875 4.875 4.875 4.875 4.875 4.875...
AV-3N Sanitary Nut Check Valve
Specifications: Size DN25-DN100, 1”-4” Working temperature -10 °C to 130 °C Working pressure 10bar Body material AISI 316L/304 Sealing material EPDM Connection Weld, thread, tri-clamp Finishing Ra<0.8 μm Standards DIN, SMS,RJT, IDF, ISO, 3A

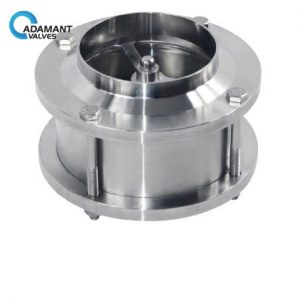

AV-3P Three Piece Check Valve
