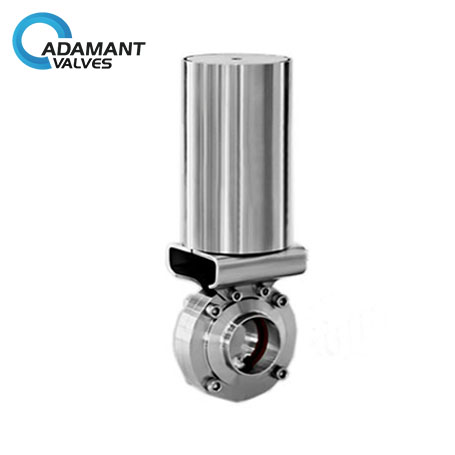

AV-1PW Sanitary Butterfly Valves with Butt-weld Ends, Pneumatic Operation

Availability : In stock

Specification

Type

Butterfly Valve

Reference No.

AV-1PW

Sizes

1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)

Diameter Nominal

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat

End connections

butt-welded

Operation

SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from

Surface treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Air supply pressure

70-116psi (5-8bar)

SKU: AV-1PW Categories: ,

Reference Price: $238- 480

Sanitary Pneumatic Butterfly Valves Description

Pneumatic Actuated Sanitary Butterfly Valve is the sanitary butterfly valves operated by a pneumatic actuator. Adamant has the ability to provides both intelligent control and stainless steel actuator with multi-connected air actuated butterfly valve of tri-clamp, butt-weld, male/female threaded, flanged to 3A, DIN, SMS, RJT, ISO, IDF, etc. The valve is whole stainless steel 304 or 316L, with sealing material to FDA177.2600. Wellgreenpneumatic actuated sanitary butterfly valve is an ideal choice for the processing industries of Food, Brewery, Beverage, Dairy, Pharmaceutical, etc.

Sanitary Pneumatic Butterfly Valves Application

AV-1PW series is pneumatic type sanitary butterfly valve with butt-welded / butt-welded ends, which is widely used in process piping systems for isolation and control. AV-1PW butterfly valve operates automatically.

Sanitary Pneumatic Butterfly Valves Specification

Type

Butterfly Valve

Reference No.

AV-1PW

Sizes

1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)

Diameter Nominal

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat

End connections

butt-welded

Operation

SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from

Surface treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Air supply pressure

70-116psi (5-8bar)

Sanitary Pneumatic Butterfly Valves Video

Sanitary Pneumatic Butterfly Valves Options

  • Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
  • The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
  • End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.
  • Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

available handles

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuator

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Sanitary Pneumatic Butterfly Valves Technical Parameters

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM All seal materials comply with FDA 21CFR177.2600
Options VMQ / Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)

VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature 150°C (302°F), Max. 20 min
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
Actuator Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.

Air Supply Port AA Actuator 1”-4” both two ports are G1/8
>4” One port is G1/4, the other is G1/8
NC Actuator 1”-4” One port is G1/8
>4” One port is G1/4
NO Actuator 1”-4” One port is G1/8
>4” One port is G1/4
