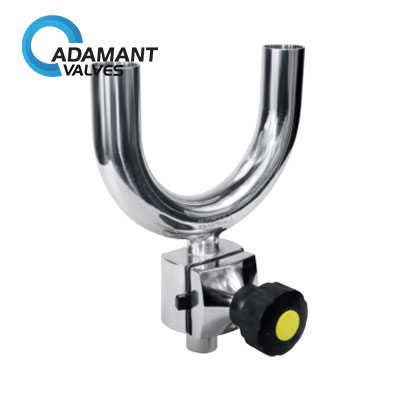

AV-4-S0406 U-Type Three-Way Mini Diaphragm Valve
| Specification | 1/4″ – 3/4″, DN6-DN15 |
| Forged Body | 316L/1.4404, ASME BPE 316L, 1.4435 NB2 Fe ≤0.5% |
| Connection Types | Welding, Clamp, Flange, Threaded |
| Standards | BPE, 3A, DIN, ISO, IDF |
| Certifications | PED/97/23/EC, 3A-18-03, FDA 177.2600 |
U-Type Three-Way Mini Diaphragm Valve Description
U-Type Three-Way Mini Diaphragm Valve is a compact, versatile valve designed for efficient fluid control in systems with limited space. Featuring a unique “U” configuration, this valve allows for precise diversion or mixing of fluids, making it ideal for applications in industries such as pharmaceuticals, biotechnology, and chemical processing.
Key Features:
U-Type Three-Way Design: Allows for fluid diversion or mixing between multiple paths, offering flexibility in flow control.
Compact and Space-Saving: Small size and design make it perfect for installations with limited space, without sacrificing functionality.
Durable Construction: Made from high-quality materials like 316L stainless steel, ensuring reliability and long service life, even in harsh environments.
Versatile Diaphragm Materials: Available with various diaphragm materials such as EPDM, PTFE, FPM, and Silicon to meet different fluid compatibility needs.
Leak-Free Operation: The diaphragm ensures a tight seal, preventing any fluid leakage and maintaining system integrity.
Easy to Operate: Manual and pneumatic operation options, providing flexibility depending on the application.
U-Type Three-Way Mini Diaphragm Valve Specifications
| Specification | Details |
| Size | 1/4″ – 3/4″, DN6-DN15 |
| Standards | BPE, 3A, DIN, ISO, IDF |
| Certifications | PED/97/23/EC, 3A-18-03, FDA 177.2600 |
| Max Temperature | -20 to 150℃ (depends on seal material, stainless steel actuator) |
| -20 to 130℃ (depends on seal material, plastic actuator) | |
| Max Pressure | Normally Closed Rubber 8 bar, PTFE 6 bar (optional) |
| Normally Closed Rubber 6 bar, PTFE 4.5 bar (standard) | |
| Normally Open & Double Acting Rubber 8 bar, PTFE 6 bar | |
| Forged Body | 316L/1.4404, ASME BPE 316L, 1.4435 NB2 Fe ≤0.5% |
| Cast Body | 1.4404/316L |
| Connection Types | Welding, Clamp, Flange, Threaded |
| Operation Type | Manual, Pneumatic |
U-Type Three-Way Mini Diaphragm Valve Applications
Pharmaceuticals & Biotechnology: Ideal for precise fluid control in sterile and sensitive processes.
Chemical Processing: Controls the flow of aggressive or corrosive chemicals in small-scale or batch processing.
Laboratories: Used in experimental setups, small reactors, and fluid handling systems where space is a concern.
Food & Beverage: Ensures hygienic flow control in food processing and production environments.
Water Treatment: Effective in small-scale water treatment systems, controlling fluid distribution and dosing.
