AV-2-S0441 Middle Threaded 2-Way Ball Valve
Size 1/2" - 4", DN10 - DN100 Material 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe ≤ 0.5% Pressure Vacuum to 10 bar (1.0 MPa) Temperature PTFE -20℃ to +130℃ (depending on the seal material) Connection Method Thread, clamp, welding, flange
AV-20 Sanitary Filling Valve With Internal Sealing
Specifications: Size ΦD=12-20 mm Working temperature -10°C - +80°C Medium temperature -10°C - 120°C Controlling pressure 3-3.5 bar(44-51psi) Working pressure 0-7 bar(0-102psi) Body material 316 Sealing material PTFE
AV-20DF Diaphragm Type Filling Valves
Specification: 1/4”-3/4”, DN4-DN15 Cylinder diameter (D): 38 and 52mm Material: 304/1.4301, 316L/1.4404 Temperature: -20℃ ~ 130℃ Diaphragm: EPDM/FKM/ EPDM+PTFE Life: ≥10 million times Action frequency: ≥6 times/s Valve body structure: straight, three-way
AV-20PF Particle Filling Valves
Specification: 1”-4”, DN25-DN100 Pressure: ≤3bar Temperature: -10℃ ~ 130℃ Material: 304/1.4301, 316L/1.4404 Particle diameter: ≤40mm Diaphragm: EPDM FKM Diaphragm life: ≥5 million times
AV-20PT Plunger Type Filling Valves
Specification: 1”-4”, DN25-DN100 Pressure: ≤10bar Temperature: -10℃ ~ 130℃ Material: 304/1.4301, 316L/1.4404
AV-21-S0426 Globe Valve With Thermal Insulation Jacket
Specification DN25 / 1" to DN100 / 4" Material ASTM 304 / 1.4301, 316L / 1.4404 Gaskets EPDM, FPM, HNBR, FDA177.2600 Temperature -20°C to +130°C Certificate 3-A-53-06, PED/97/23/EC, FDA177.2600
AV-21-S0428 Reversing Globe Valve With Slow Device
Specification DN25 / 1" to DN100 / 4" Material ASTM 304 / 1.4301, 316L / 1.4404 Gaskets EPDM, FPM, HNBR, FDA177.2600 Temperature -20°C to +130°C Certificate 3-A-53-06, PED/97/23/EC, FDA177.2600
AV-21-S0429 Pneumatic Reversing Globe Valve
Pneumatic Reversing Globe Valve Description Pneumatic Reversing Globe Valve is a hygienic, single-seat control valve designed for automatic flow diversion and fluid regulation. Operated pneumatically, it ensures reliable switching between different process lines with minimal leakage and high precision. The valve is constructed with smooth...

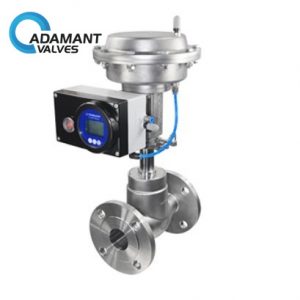

AV-21DT Diaphragm Type Pneumatic Globe Valve with Positioner
Size: DN25-DN100 to 1"-4" Material: ASTM304/316L, 1.4301/1.4404 Working temperature: -10℃ to +120℃ (EPDM) Working pressure: 10bar 145PSI Compressed air: 4-7bar
