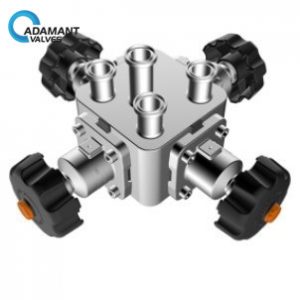

AV-4PWT 4-position 5-way Titanium Diaphragm Valve G0945.1
Size 3/4"-2.5", DN20-DN65 Body material 254SMO N08904 Titanium TA1/TA2 Outlet Connection Clamp, weld, Special interface Working Temp. -20 to 120℃ Max. pressure 10 bar
AV-4PWV 4-position 7-way Titanium Diaphragm Valve G0947.2
Size 3/4"-2.5", DN20-DN65 Body material 254SMO N08904 Titanium TA1/TA2 Outlet Connection Clamp, weld, Special interface Working Temp. -20 to 120℃ Max. pressure 10 bar
AV-4S Sanitary Series Diaphragm Valves
Specifications: Material Parts in Contact with the Product 316L(1.4404) Parts Not in Contact with the Product 304(1.4301) Seat Material EPDM+PTFE Pressure Working Pressure Manual Type0～10bar Pneumatic Type0～4.5bar Temperature Working Temperature EPDM-20～+120℃、EPDM+PTFE-20～+130℃ Sterilizing Temperature 150℃≤30min Surface Treatment Inner Surface Treatment Ra0.4～0.6μm Outer Surface Treatment Ra0.8～1.6μm Connection...
AV-4TD 2-position 3-way Titanium Diaphragm Valve G0923.1
Materials: 254SMO N08904 Titanium TA1/TA2 Size: 1"-4", DN25-DN100 Working Temp. : -20 to 150℃ Set Pressure: 10 bar Connection clamp: clamp, welding, and other special connection

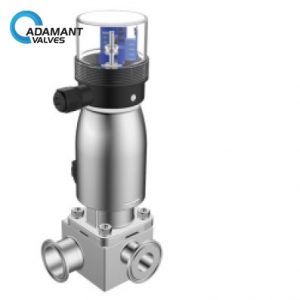

AV-4TG T Type Titanium Diaphragm Valve G07
Materials: 254SMO N08904 Titanium TA1/TA2 Size: 1"-4", DN25-DN100 Working Temp. : -20 to 150℃ Set Pressure: 10 bar Connection clamp: clamp, welding, and other special connection
AV-4TS T-Shape 3-Way Diaphragm Valves
Materials: 316L/1.4404 Size: 1"-4", DN25-DN100 Working Temp. : -20 to 150℃ Set Pressure: 10 bar Connection clamp: clamp, welding, and other special connection
AV-4TV 3-position 4-way Titanium Diaphragm Valve G0934.1
Materials: 254SMO N08904 Titanium TA1/TA2 Size: 1"-4", DN25-DN100 Working Temp. : -20 to 150℃ Set Pressure: 10 bar Connection clamp: clamp, welding, and other special connection
AV-4UD U Type Diaphragm Valve G08.1
Size 1"-4", DN25-DN100 Body material 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, flange Working Temp. -20 to 150℃ Working pressure ≤16Mpa

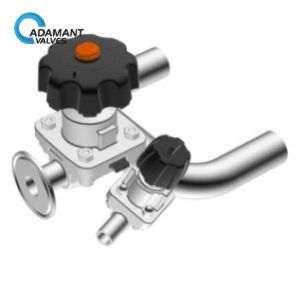

AV-4UG U Type Diaphragm Valve with sampling G03.1
Size 1"-4", DN25-DN100 Body material 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, flange Working Temp. -20 to 150℃ Working pressure ≤16Mpa
