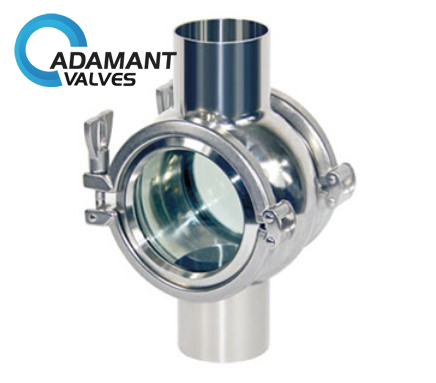

AV-29FS Sanitary Four-way Sight Glass (Standard Type)
Availability :
In stock
Materials: AISI 304(1.4301) AISI 316L(1.4404)
Gasket material: EPDM NBR in accordance withFDA177.2600
Size: 1″-4″to DN25-DN100
Operating Temp.: -10 to 150℃
Connections: thread, clamp, weld, DIN, SMS, IDF
Specific properties:
- No retention
- No dead angle
- Water proof
- Explosion-proof
Related products: AV-12 Sanitary Sight Glasses, AV-24U Sanitary Union Sight Glass, AV-24F Sanitary Four-Way Sight Glass, SS-SVP Sanitary View Port
Sanitary Four-way Sight Glass Description
Sanitary Four-way Sight Glass is comprised of stainless-steel frame and tempered glass. Through it, operators can observe the flowing of the media clearly and precisely in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.

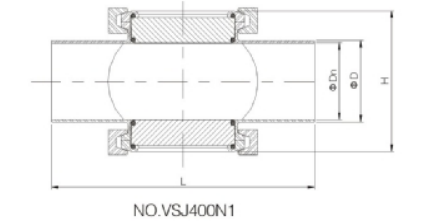

Sanitary Four-way Sight Glass Specification
| Size | D | Dn | H | L |
| DN40 | 40 | 37 | 75.1 | 165 |
| DN50 | 52 | 49 | 87.8 | 165 |
| DN65 | 70 | 66 | 108 | 218 |
| DN80 | 85 | 81 | 123 | 250 |
| DN100 | 104 | 100 | 141.6 | 300 |
Sanitary Four-way Sight Glass Function Options
- Wireless power supply, one charging can use 2-3 months (Depending on the frequency)
- Cable power supply AC110V-220V, one charging can use 2-3 months (Depending on the frequency)
- All stainless-steel mirror lamp DC24V power supply
- No retention, zero dead angles, high light, white cold light source, waterproof, explosion-proof
Sanitary Four-way Sight Glass Applications
Sanitary Four-way Sight Glass is used in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.
