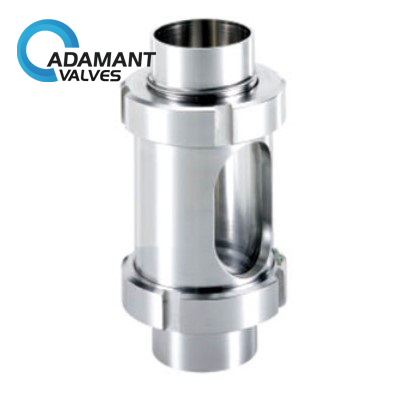

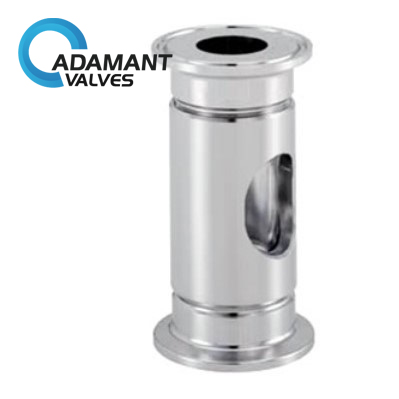

AV-29IG Sanitary Inline Sight Glass

Availability : In stock

Materials: AISI 304, Tempered glass

Size: DN25/1″-DN100/4″

Operating Temp. : -10 to 120℃

Max Pressure: 10 bar

Connections: Clamp, weld, thread, DIN SMS RJT ISO IDF ASME BPE DIN 11864

Special characteristics:

  • Full bore design
  • 360° observation
  • Can be installed at any angle

Related products: Sanitary Straight Sight Glass, AV-12 Sanitary Sight Glasses, AV-24U Sanitary Union Sight Glass, AV-24F Sanitary Four-Way Sight Glass, SS-SVP Sanitary View Port

SKU: AV-29IG Category:

Sanitary Inline Sight Glass Description

Sanitary Inline Sight Glass is comprised of a stainless-steel frame and tempered glass. Through it, operators can observe the flowing of the media clearly and precisely in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.

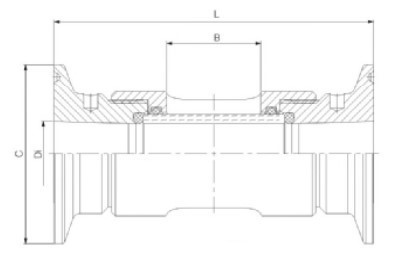

Sanitary Inline Sight Glass Specification

Sanitary Inline Sight Glass

Size C (mm) D (mm) B (mm) L (mm)
DN08 25.00 8 20 76
DN10 34.00 10 20 76
DN15 50.50 16 30 92
DN20 50.50 20 30 92
DN25 50.50 26 32 92
DN32 50.50 32 32 92
DN40 64.00 38 32 120
DN50 64.00 50 48 120

Sanitary Inline Sight Glass Applications

Sanitary Inline Sight Glass is used in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.
