What is the sanitary plug valve?

The plug valve is a closing or plunger-shaped rotary valve. Its valve plug can be cylindrical or conical in shape. In a cylindrical valve plug, the passage is generally rectangular; in a tapered valve plug, the passage is trapezoidal. It is most suitable for use as a cutting and closing medium and a shunt, it can also be used for throttling depending on the applicable properties and the erosion resistance of the sealing surface.

Type: Plug valve
Reference No.: AV-19
Sizes: 1″ – 3″
Grades: 304 – 316L
Operation: Manual, Pneumatic

Adamant® Valves AV-19 series stainless steel sanitary plug valve uses:

Plug valves are typically served in on-off operations, particularly in the position where the frequent operation of the valve is necessary such as dairy, beverage, and pharmaceutical.

Adamant® Valves AV-19 series stainless steel sanitary plug valves advantages:

Plug valves have been used in different situations for a long time. Its design is simple enough and is high-efficiency and low in fluid resistance. The flow direction and the installation direction cannot affect the function of sanitary plug valves, makes it popular in many industries.

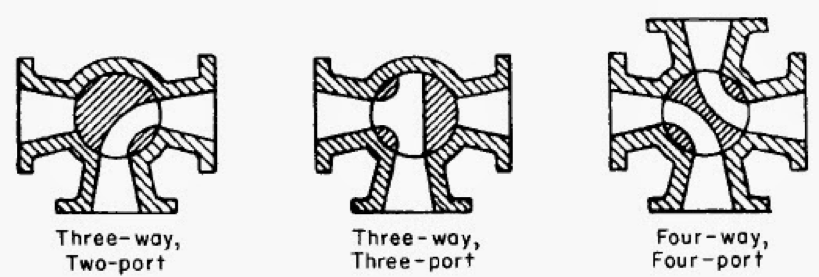

plug valve introduction

Showing all 4 results

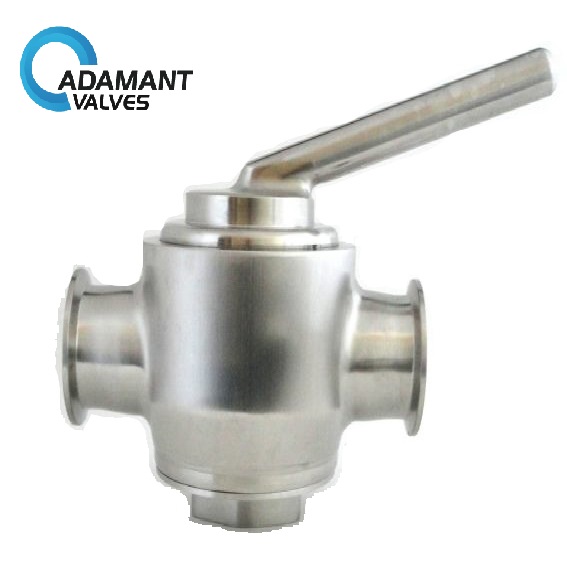

AV-19N2 Sanitary 2-Way Plug Valve with Tri-Clamp Ends, Manual Type

Specifications: Size 1"-3"/DN25-75 Working pressure 0-6 bar (87psi) Outside surface Matte, light, sandblast and electronic polishing Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request. Leakage Up to 0.02% of Kv/Cv △Pm Max. 800kPa(116psi), water Working temperature 14 ~...

AV-19N3 Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type

Specifications: Size 1"-3"/DN25-75 Working pressure 0-6 bar (87psi) Outside surface Matte, light, sandblast and electronic polishing Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request. Leakage Up to 0.02% of Kv/Cv △Pm Max. 800kPa(116psi), water Working temperature 14 ~...

AV-21MG1 Sanitary Manual 4-way 1-port Plug Valve with Tri-clamp

 Specifications: Size 1/4”-1” Working temperature -10°C ~ 150°C Working pressure 0-10 bar Body material 316L Sealing material PTFE Connection Tri-Clamp Finishing Ra≤1.6 μm (outside surface) Ra≤0.8 μm (inside surface)

AV-21MG2 Sanitary Manual 4-way 2-port Plug Valve with Tri-clamp

Specifications: Size 1/4”-1” Working temperature -10°C ~ 150°C Working pressure 0-10 bar Body material 316L Sealing material PTFE Connection Tri-Clamp Finishing Ra≤1.6 μm (outside surface) Ra≤0.8 μm (inside surface)
