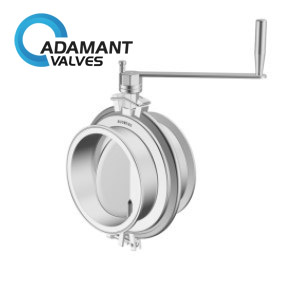

AV-1SB Sanitary Titanium Manual Star Type Valve D10

Availability : In stock

Size	DN25-1200
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Connection	weld, clamp, thread, flange and other standards
Working Temp.	-25 to 150℃
Max. Working Pressure	PN6, PN10, PN16

Sanitary Titanium Manual Star Type Valve D10 Description

Sanitary Titanium Manual Star Type Valve D10 is installed in the diameter direction of the pipe. The disc around the axis of rotation, rotation Angle is 0-90°. It only has to be rotated at 90°. The valve can be opened and closed quickly, is easy to operate, and has good fluid control characteristics. The pressure drop generated by the valve is very small, so it has good flow control characteristics. The elastic seal valve and sealing ring can be mounted on the valve body or attached to the disc periphery. It is made of Titanium TA1/TA2. This field-proven and industry-preferred valve are better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Sanitary Titanium Manual Star Type Valve D10 Specifications

Size	DN25-1200
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Connection	weld, clamp, thread, flange and other standards
Working Temp.	-25 to 150℃
Max. Working Pressure	PN6, PN10, PN16

Sanitary Titanium Manual Star Type Valve D10 Applications

Sanitary Titanium Manual Star Type Valve D10 can be applied in various fluid control systems, such as food and beverage, wine, pharmaceutical, and other industries.
