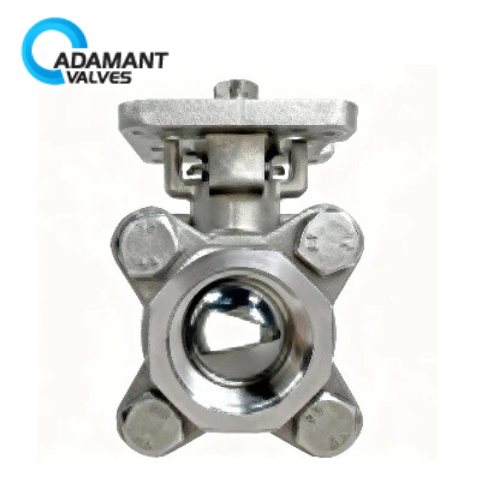

AV-14-S0532 Manual 90° V-Port Valve (1 NPT)

Manual 90° V-Port Valve (1 NPT) Description

The Manual 90° V-Port (1 NPT) is engineered for controlled redirection of fluid flow in manual valve systems. It is appropriate for sectors such as chemical processing, food and beverage, water treatment, and general industrial piping.

Key Features:
– V-Port Configuration: Enables a 90° fluid path change, minimizing flow disruption and pressure loss.
– Manual Operation: Simplifies control without reliance on auxiliary power sources.
– Material Integrity: Constructed in stainless steel to withstand corrosive environments and high pressures.
– Seal Performance: Utilizes Teflon/Viton sealing to maintain fluid integrity under 1000PSI.

Manual 90° V-Port Valve (1 NPT) Specifications

Specification	Details
Size	1 NPT
Material	Stainless Steel
Pressure	1000PSI
Seal Options	Teflon/Viton

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Manual 90° V-Port Valve (1 NPT) Applications

Chemical Processing: Used for redirecting fluid streams in manual control systems for chemical formulations.
Food & Beverage: Applied in production settings to isolate and direct liquid flows during processing.
Water Treatment: Employed to manage flow paths in treatment facilities for effective process control.
General Industrial: Suitable for manual fluid isolation and redirection in small piping systems.
