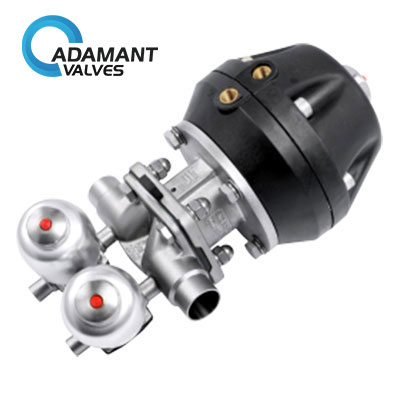

AV-4-S0398 Modular Multi-Port Diaphragm Valve
| Specification | 1/2″–4″, DN6–DN100 |
| Working Pressure | ≤10 bar (145 PSI) |
| Working Temperature | -20 to 150℃ (depending on seal material) |
| Material | ASTM 316L, 1.4404, 1.4435 NB2 (Fe < 0.5%) |
| Operation | Manual, Pneumatic |
Modular Multi-Port Diaphragm Valve Description
Modular Multi-Port Diaphragm Valve is specially engineered to meet the strict requirements of hygienic and aseptic fluid systems. By integrating multiple valve functions into a single compact unit, it minimizes dead legs, reduces hold-up volume, and optimizes cleanability, making it highly suitable for high-purity applications.
- GMP Valve Configuration
Designed for use at water distribution points in vertical pipelines, particularly in high-purity water and other utility systems. The design effectively reduces dead zones. One valve is positioned horizontally at a defined self-draining angle, while the main valve is installed vertically. When opened, the vertical outlet serves as a sterile sampling point, free from bacterial growth or cross-contamination risks.
- SAP Valve Configuration
Applied in horizontal piping systems, where the main valve is installed horizontally at a defined self-draining angle. The outlet port is located at the lowest point of the main waterway, ensuring complete drainage and effective system cleaning.
With its modular design, the multi-port diaphragm valve provides flexibility for custom piping layouts, reduced installation space, and superior compliance with GMP, ASME BPE, EHEDG, and 3A standards.
Modular Multi-Port Diaphragm Valve Specifications
| Specification | Details |
| Size | 1/2″–4″, DN6–DN100 |
| Material | 316L / 1.4404, 1.4435 NB2 (Fe ≤ 0.5%) |
| Temperature Range | -20℃ to +150℃ (depending on sealing material) |
| Pressure | 10 bar |
| Internal Surface | Ra 0.4 μm, Electro-polished, Mechanical-polished |
| Diaphragm Options | Double-layer: EPDM+PTFE; Single-layer: EPDM, FPM, Silicone |
| Operation | Manual, Pneumatic |
| Control Options | Configurable:
1) Control Unit C-TOP; 2) Valve Positioner IL-TOP; 3) Mechanical Position Indicator; 4) Position Sensor |
Modular Multi-Port Diaphragm Valve Applications
High-purity water distribution systems in pharmaceutical and biotechnology industries
Sterile sampling points in vertical pipelines (GMP valve configuration)
Drainage and cleaning outlets in horizontal piping systems (SAP valve configuration)
Aseptic fluid transfer in hygienic and sterile process environments
CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems requiring reliable self-drainability
Space-optimized piping layouts where multiple valve functions are integrated into one unit
Food, beverage, cosmetics, and personal care production where hygienic standards are critical
