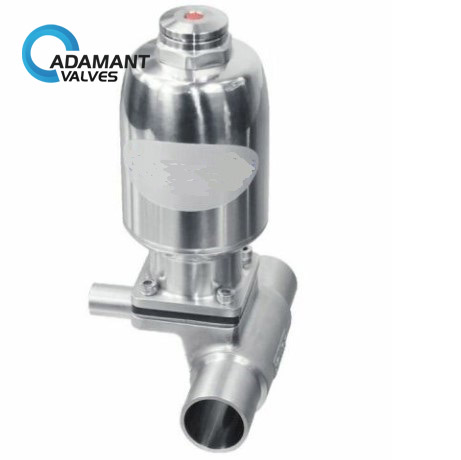

AV-20DF Diaphragm Type Filling Valves
Availability :
In stock
Specification: 1/4”-3/4”, DN4-DN15
Cylinder diameter (D): 38 and 52mm
Material: 304/1.4301, 316L/1.4404
Temperature: -20℃ ~ 130℃
Diaphragm: EPDM/FKM/ EPDM+PTFE
Life: ≥10 million times
Action frequency: ≥6 times/s
Valve body structure: straight, three-way
Diaphragm Type Filling Valves Description
Diaphragm Type Filling Valve is a non-retention, no dead angle, aseptic filling valve. It has a very high operating frequency.
Diaphragm Type Filling Valves Specifications
| Specification | 1/4”-3/4”, DN4-DN15 |
| Cylinder diameter (D) | 38 and 52mm |
| Material | 304/1.4301, 316L/1.4404 |
| Temperature | -20℃ ~ 130℃ |
| Diaphragm | EPDM/FKM/ EPDM+PTFE |
| Life | ≥10 million times |
| Action frequency | ≥6 times/s |
| Valve body structure | straight, three-way |
Diaphragm Type Filling Valves Applications
Diaphragm Type Filling Valve has special advantages when applied to filling equipment such as pharmaceuticals or beverages.
Related products: AV-20 Sanitary Filling Valve With Internal Sealing, Particle Filling Valves, Plunger Type Filling Valves
