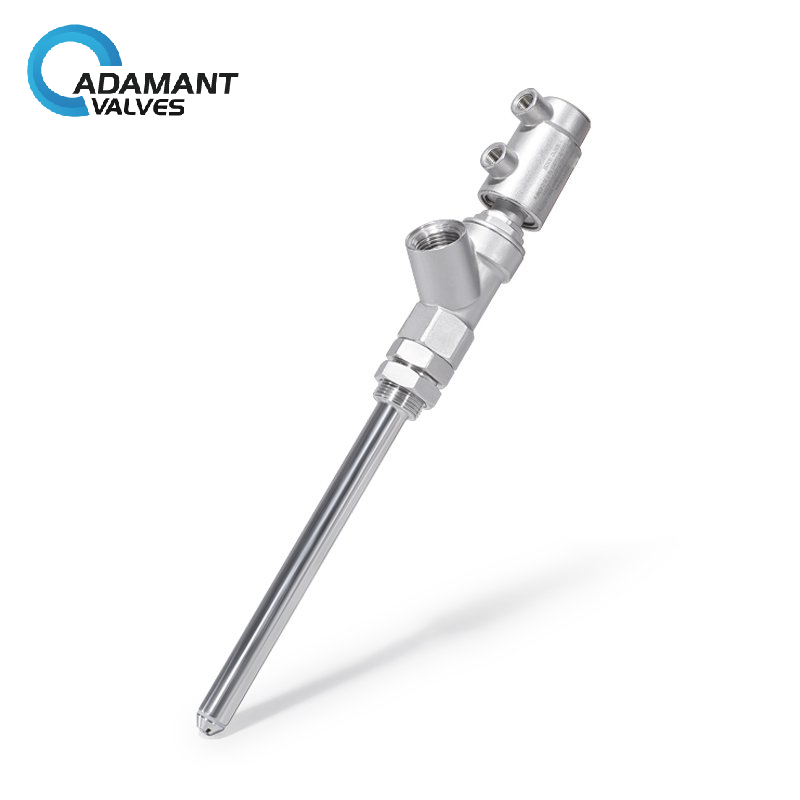

AV-20 Sanitary Filling Valve With Internal Sealing

Availability : In stock

Specifications:

Size ΦD=12-20 mm
Working temperature -10°C – +80°C
Medium temperature -10°C – 120°C
Controlling pressure 3-3.5 bar(44-51psi)
Working pressure 0-7 bar(0-102psi)
Body material 316
Sealing material PTFE
SKU: AV-20 Category:

Sanitary Filling Valve Description:

The filling valve is a switching valve that can accurately and quantitatively control the flow. The special structure and sealing design at the bottom of the valve can ensure filling without dripping while ensuring flow. It has been widely used in filling machinery, especially for viscous, creamy and easy-froth fluid filling.

Sanitary Filling Valve Specifications:

Size ΦD=12-20 mm
Working temperature -10°C – +80°C
Medium temperature -10°C – 120°C
Controlling pressure 3-3.5 bar(44-51psi)
Working pressure 0-7 bar(0-102psi)
Body material 316
Sealing material PTFE

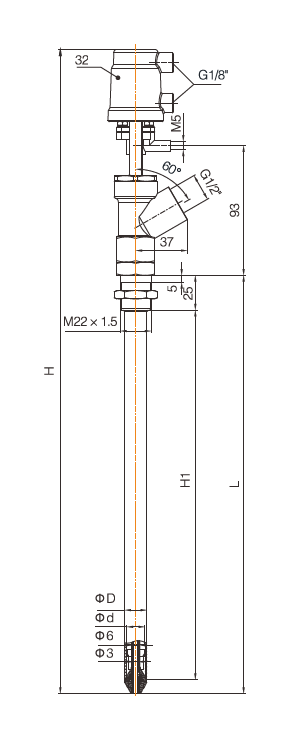

sanitary filling valve

ITEM φD φd L H H1
AV-1AJ 20 17 300 462 265
AV-1AG 20 17 130 292 95
AV-1AE 16 13 300 462 265
16 13 220 462 265
AV-1AI 16 13 130 292 95
AV-1AK 12 10 300 462 265
AV-1AH 12 10 130 292 95

Sanitary Filling Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

Sanitary Filling Valve Applications:

  • Soy sauce
  • Vinegar
  • Viscous liquid
