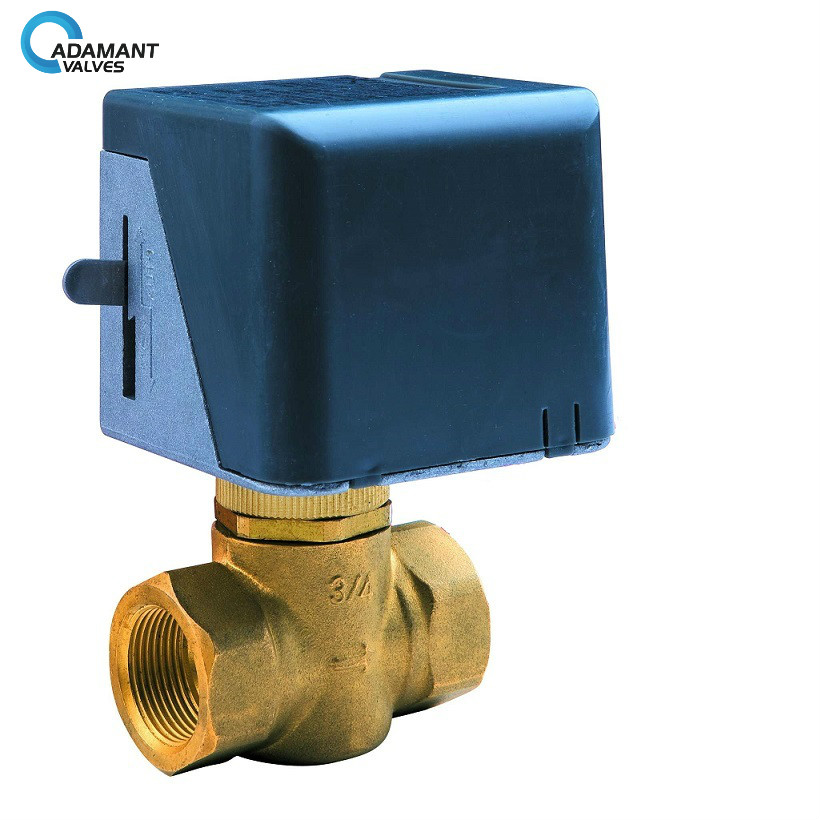

AV-1HTE High Performance Electric Two Way Ball Valves, Threaded Ends With Brass Body

Availability : In stock

Specifications:

Size 1/2”-2”(DN15-50)
Working temperature 1°C-95°C
Nominal pressure 2.0MPa
Body material Brass
Connection Threaded
Medium Water
Sealing material NBR
Standards ISO228
SKU: AV-1HTE Category:

Description:
This valve is generally used to control the opening or closing of the pipeline of the cold water or hot water air conditioning system to achieve the purpose of controlling the room temperature. The motor has a temperature protector (overload device) that automatically turns off when the motor temperature reaches 100 °C.

Specifications:

Size 1/2”-2”(DN15-50)
Working temperature 1°C-95°C
Nominal pressure 2.0MPa
Body material Brass
Connection Threaded
Medium Water
Sealing material NBR
Standards ISO228
DN D L G
15 15 58.5 1/2
12 35 1/2
20 20 67.5 3/4
15 63 3/4
25 25 78 1 1/4
19 71 1 1/4
32 25 80.5 1
40 30 83 1 1/2
50 38 94 2

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close

NO operated: normally open (fail open)—air to close, spring to open

AA operated: double-acting—air to open, air to close

Sanitary Full Port Ball Valves actuators

Applications:

It is usually used to control the opening or closing of pipes in cold water or hot water air conditioning systems to achieve the purpose of controlling room temperature.
