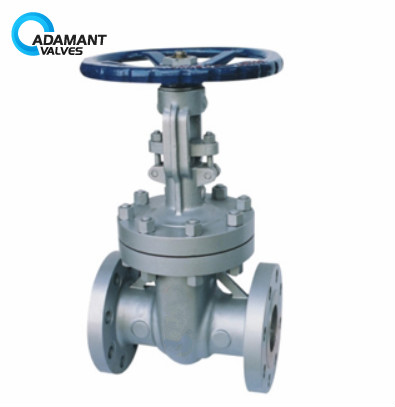

AV-HPGV Gate Valve, WCB Body, Worm Gear Operator, Flanged
Availability :
In stock
Specifications:
| Size | 1/2”-24”, DN15-DN600 |
| Body Material | 316L, 316 |
| Working temperature | -40-500 °C |
| Outside surface | Matte, light, sandblast and electronic polishing |
| Sealing material | SILICON, FKM |
| Connection | Flanged, welded, thread |
| Body Material | WCB, 304, 304L, 316 |
| Tightness grade | API598 |
| Sealing material | Metal seat |
Gate Valve Description
A Gate valve is usually used in fully open or fully closed services. It is an isolating valve installed in pipelines; it’s not a regulating valve. When a gate valve is fully open, there is no obstruction in the flow path, thus giving a very low-pressure loss. Due to a design of a multiturn stem, one open or close operation of the valve is done using a threaded stem, which prevents water hammer effects.
Gate Valve Specifications
| Size | 1/2”-24”, DN15-DN600 |
| Body Material | 316L, 316 |
| Working temperature | -40-500 °C |
| Outside surface | Matte, light, sand blast and electronic polishing |
| Sealing material | SILICON, FKM |
| Connection | Flanged, welded, thread |
| Body Material | WCB, 304, 304L, 316 |
| Tightness grade | API598 |
| Sealing material | Metal seat |
Gate Valve Applications
Our Gate valves are used in a general medium such as:
Potable water, wastewater and neutral, oxidation and corrosive liquids and gas
