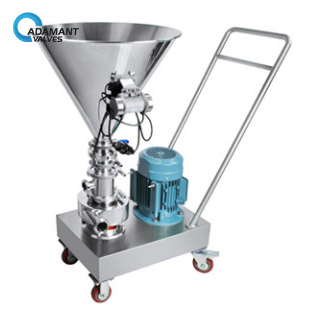

AV-18MP Mixing Pumps/Mixers

Availability : In stock

Maximum processing capacity: 60m3/h

The maximum amount of solid Inhalation: 9000Kg/h

Maximum temperature: 130℃

Maximum pressure: 5 Bar

Mechanical seal design: Single End SIC / SIC, double-end SIC / SIC

Other options:

(1) Pneumatic valves

(2) Mixing chamber sieve

(3) Excretory system

(4) Hopper vibrator

(5) Low level sensor

SKU: AV-18MP Category:

Mixing Pumps/Mixers Description

Mixing Pumps/Mixers series is for mixing solid or powder into the liquid. It provides online perfect processing solutions for milk powder compounding, syrup making, and brine making, etc. It also can be used for preparing solid and powder mixing in the food and beverage, bio pharmacy, traditional Chinese medicine making, cosmetics, and chemicals.

Mixing Pumps/Mixers Specifications

The maximum processing capacity of powder 9000KG/h
Maximum processing of thickeners 3000KG/h
Maximum temperature 130 ℃
Material 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal single machine seal and double machine seal
Inlet/outlet connections Thread, clamp, flange, sterile flange

mixing pumps mixers

* For detailed information, please contact us.

Mixing Pumps/Mixers Applications

in the food and beverage, bio pharmacy, traditional Chinese medicine making, cosmetics, and chemicals, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.

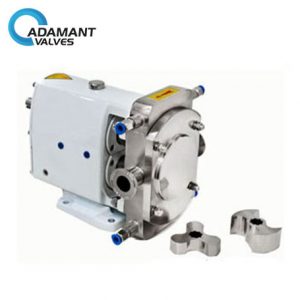

Related products: AV-18 AVZ SANITARY ROTARY LOBE PUMPS, AV-18AVB SANITARY LIQUID RING PUMPS, AV-23SSP SANITARY SELF-PRIMING PUMP
