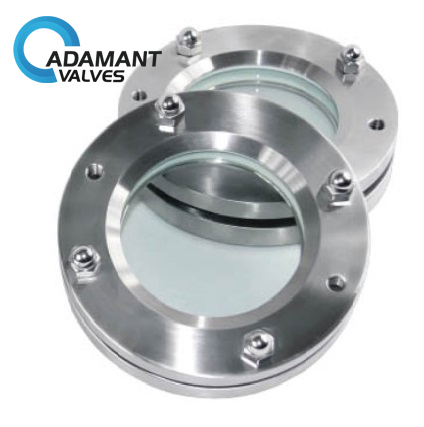

AV-29FG Sanitary Flange Sight Glasses

Availability : In stock

Materials: AISI 304(1.4301) AISI 316L(1.4404)

Gasket material: PTFE in accordance with FAD 177.1600

Size: 1.5″-8″-DN40-DN200

Operating Temp.: -10 to 120℃

Max Pressure: 10 bar

Connections: Clamp, weld, thread, DIN SMS RJT ISO IDF ASME BPE DIN 11864

Assemble flange with glass by using hexagon socket bolts

Related products: Sanitary Straight Sight Glass, AV-12 Sanitary Sight Glasses, AV-24U Sanitary Union Sight Glass, AV-24F Sanitary Four-Way Sight Glass, SS-SVP Sanitary View Port

Sanitary Flange Sight Glasses Description

Sanitary Flange Sight Glasses are comprised of a stainless-steel frame and tempered glass. Through it, operators can observe the flowing of the media clearly and precisely in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.

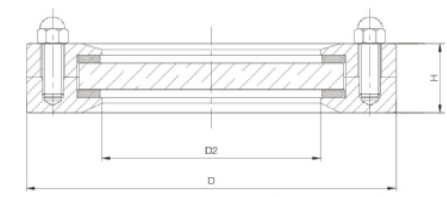

Sanitary Flange Sight Glasses Specification

Size	H	D	D2
DN40	25	115	68
DN50	29	140	78
DN65	29	155	98
DN80	29	155	98
DN100	30	190	128
DN125	33	224	154
DN150	41	250	183
DN200	45	310	233

Sanitary Flange Sight Glasses Function Options

Wireless power supply, one charging can use 2-3 months (Depending on the frequency)
Cable power supply AC110V-220V, one charging can use 2-3 months (Depending on the frequency)
Cable power supply DC24V
No retention, zero dead angles, high light, white cold light source, waterproof, explosion-proof
