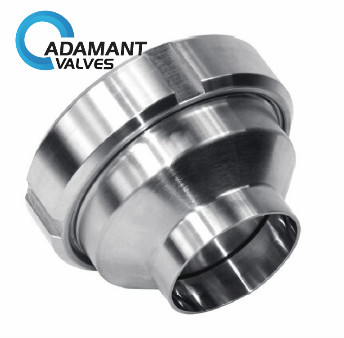

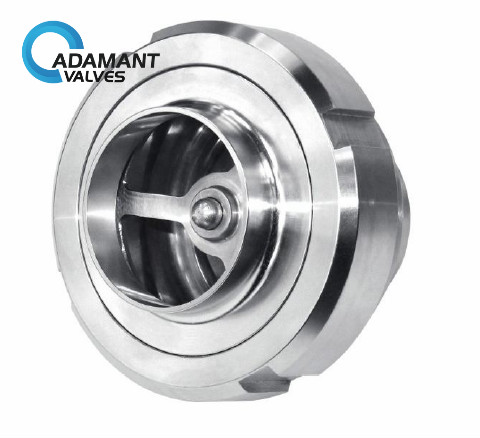

AV-3N Sanitary Nut Check Valve

Availability : In stock

Specifications:

Size	DN25-DN100, 1”-4”
Working temperature	-10 °C to 130 °C
Working pressure	10bar
Body material	AISI 316L/304
Sealing material	EPDM
Connection	Weld, thread, tri-clamp
Finishing	Ra<0.8 μm
Standards	DIN, SMS,RJT, IDF, ISO, 3A

Sanitary Nut Check Valve Description:

The Sanitary Nut Check Valve can prevent the fluid from flowing back and ensure the uniqueness of the fluid flow direction. It can also be used to protect the loss of liquid backflow. The Sanitary Nut Check valves are generally used in food processing, beverages, winemaking, oil refining, cosmetics, pharmaceuticals, and chemical products industries.

Sanitary Nut Check Valve Specifications:

Size	DN25-DN100, 1”-4”
Working temperature	-10 °C to 130 °C
Working pressure	10bar
Body material	AISI 316L/304
Sealing material	EPDM
Connection	Weld, thread, tri-clamp
Finishing	Ra<0.8 μm
Standards	DIN, SMS,RJT, IDF, ISO, 3A

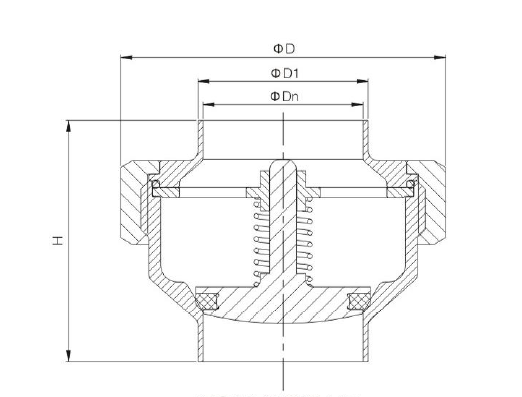

SIZE	H	D1	Dn	D
1”	65	25.4	22.4	70
1 1/4”	65	31.8	28.8	70
1 1/2”	65	38.1	35.1	82
2”	74	50.8	47.8	97
2 1/2”	85	63.5	59.5	118
3”	93	76.2	72.2	138
3 1/2”	93	89	85	138
4”	103	101.6	97.6	158

Sanitary Nut Check Valve Applications:

The Sanitary Nut Check Valves are generally used in food processing, beverages, winemaking, oil refining, cosmetics, pharmaceuticals, and chemical products industries.
