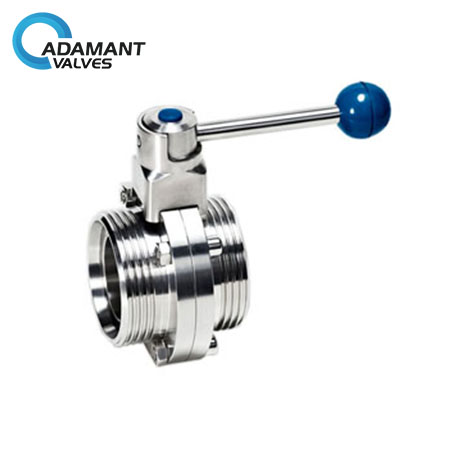

AV-1MT Sanitary Thread Butterfly Valves with Pull Handle

Availability : In stock

Specification

Type

Butterfly Valve

Reference No.

AV-1MT-P

Sizes

1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 – DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat

End connections

 threaded

Operation

3-position Pull handle

Surface treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

SKU: AV-1MT Category:

Reference Price: $219-463

Sanitary Thread Butterfly Valves Description

Adamant’s Sanitary Threaded Butterfly Valves with Pull Handle is constructed from 316 Stainless Steel with a 32Ra ID/OD polish. Flange / Flanged is available with your choice of end connection.

They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Sanitary Thread Butterfly Valves Application

AV-1MT series is a manual type sanitary butterfly valve with thread/thread ends, which is widely used in process piping systems for isolation and control. AV-1MT-P butterfly valve operates manually.

Sanitary Thread Butterfly Valves Specification

Type

Butterfly Valve

Reference No.

AV-1MT-P

Sizes

1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 – DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat

End connections

 threaded

Operation

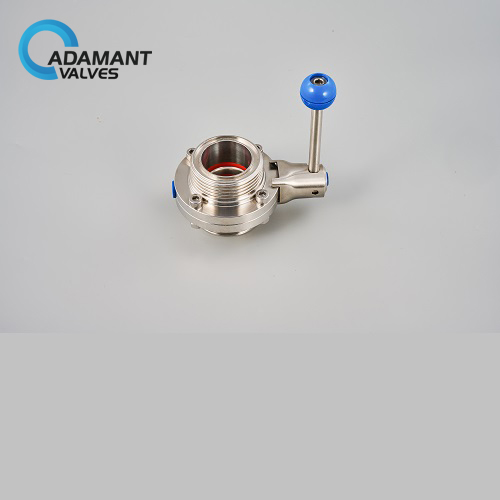

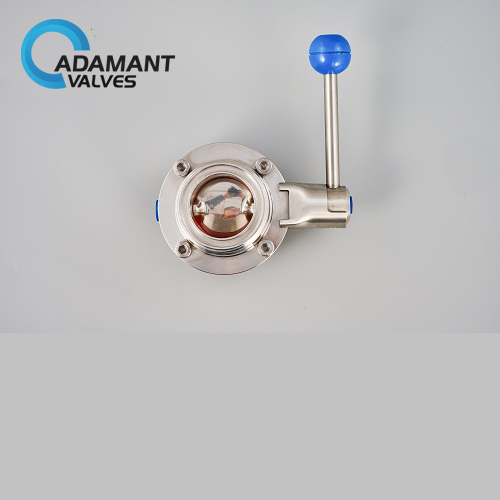

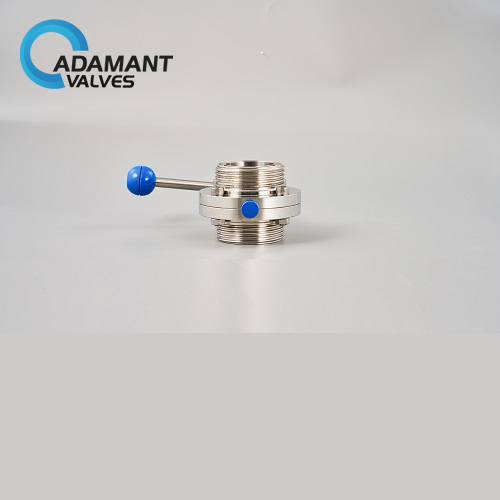

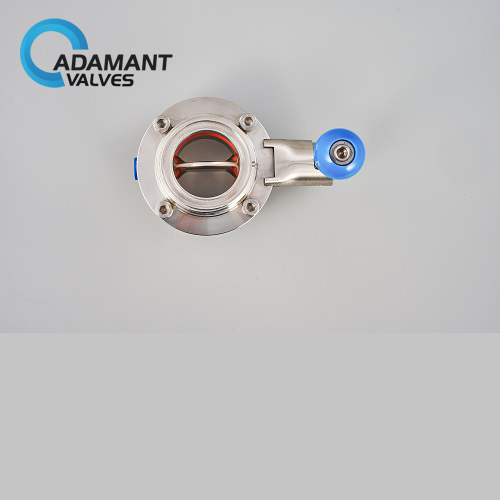

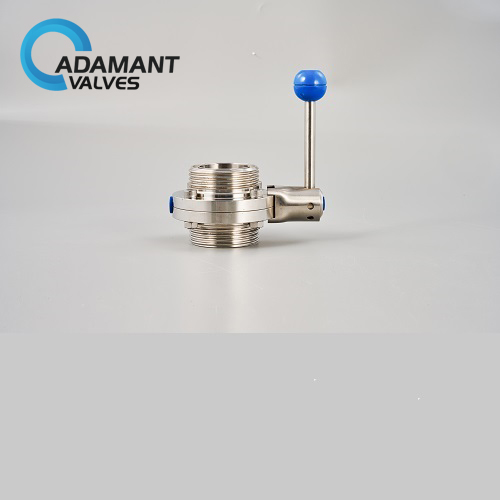

4-position Pull handle as the product photo shows

Surface treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

sanitary butterfly valves

Sanitary Thread Butterfly Valves Options

  • Valve body and disc material can be AISI 304 or AISI 316L, 304L, and 316 materials are available upon request.
  • The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
  • End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.
  • Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

available handles

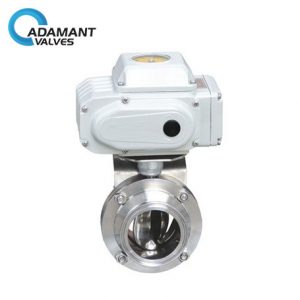

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuator

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

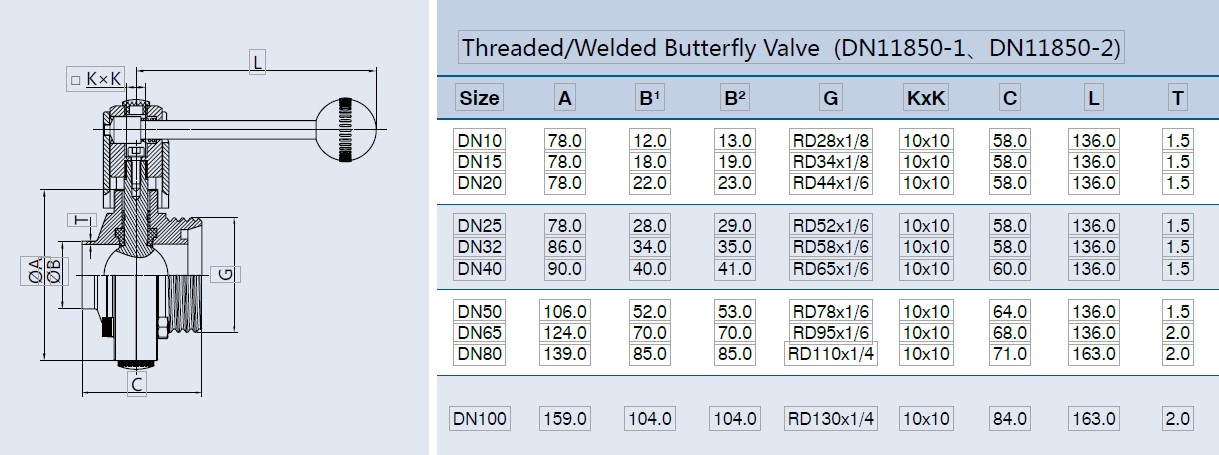

Technical Parameters of Sanitary Thread Butterfly Valves

Steel material Product wetted steel parts AISI 304 or 316L

(1.4301 / 1.4404)

Provided with the material inspection report
Other steel parts AISI 304
Seal material Standard EPDM All seal materials comply with FDA 21CFR177.2600
Options VMQ / Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)

VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C)

Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)

Sterilization temperature 150°C (302°F), Max. 20 min
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections: butt-welded, tri-clamped, male and female threaded or flanged
