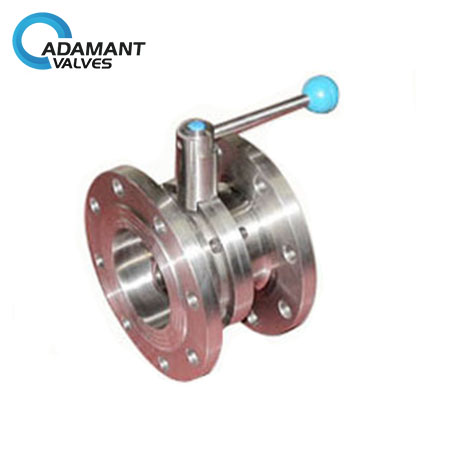

AV-1MF Sanitary Flange Butterfly Valves with Pull Handle

Availability : In stock

Specification

Size 1/2”-10”(DN10-DN200)
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Working pressure Up to 145psi (10bar) for DN15/0.5″-DN100/4″, 116psi (8bar) for DN125/5″-DN150/6″, 73psi (5bar) for DN200/8″
Material Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request
Connection Flange / Flange, other connections are available
Standards Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
SKU: AV-1MF Category:

Description

Adamant’s Sanitary Flanged Butterfly Valves with Pull Handle is constructed from 316 Stainless Steel with a 32Ra ID/OD polish. Flange / Flanged is available with your choice of end connection.

They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Specification

Size 1/2”-10”(DN10-DN200)
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Working pressure Up to 145psi (10bar) for DN15/0.5″-DN100/4″, 116psi (8bar) for DN125/5″-DN150/6″, 73psi (5bar) for DN200/8″
Material Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request
Connection Flange / Flange, other connections are available
Standards Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

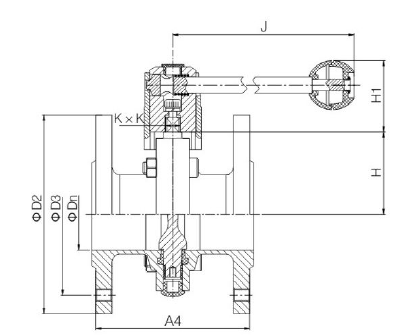

sanitary flange butterfly valves

SIZE Dn D2 D3 K×K J H H1 A4
DN10 10 8×8 126 40 43.5
DN15 15 95 65 8×8 126 40 43.5 110
DN20 19 105 75 8×8 126 40 43.5 110
DN25 25 115 85 8×8 126 40 43.5 110
DN32 31 135 100 8×8 126 44.5 43.5 116
DN40 37 145 110 8×8 126 46.5 43.5 118
DN50 49 160 125 10×10 133 54.5 47.5 120
DN65 66 180 145 10×10 144 64 47.5 124
DN80 81 195 160 11×11 160 70.5 50 130
DN100 100 215 180 11×11 160 81 50 152
DN125 125 245 210 14×14 257 94.5 52.5 178
DN150 150 280 140 14×14 257 110 52.5 198
DN200 200 335 295 14×14 397 145 52.5 270

Options

  • Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
  • The seat and gasket can be EPDM, VMQ (Silicone) or Viton (FPM), all complying with FDA 21CFR177.2600.
  • End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
  • Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

available handles

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuator

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications

– Foods
– Medicine
– Chemical engineering
– Metallurgy
