AV-4FC CPVC Diaphragm Valve

Availability : In stock

 Specifications:

Size DN 15-300
Working temperature 93-100°C
Body material CPVC
Sealing material F46/PFA
Connection Flange
SKU: AV-4FC Category:

CPVC Diaphragm Valve Description

The CPVC diaphragm valve is suitable for the transmission of corrosion medium and the regulation of the flow and interception. The overflow components are assembled by RPP or PVDF injection parts. It has excellent corrosion resistance and lightweight, is a good replacement of stainless steel valves in some cases. The sealing diaphragm of the CPVC diaphragm valve uses F46 or PFA, which can fold more than 1200 times. The screw lifting structure made the opening and closing moment is large and stable.

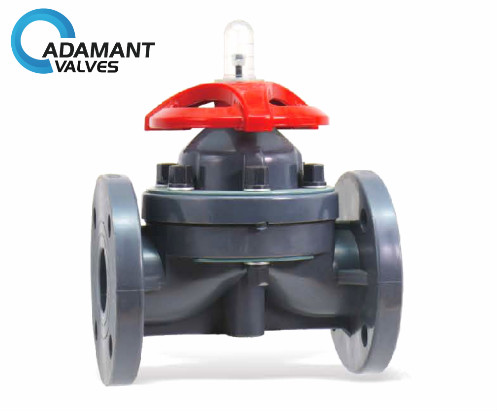

CPVC Diaphragm Valves

CPVC Diaphragm Valve Specifications

Size DN 15-300
Working temperature 93-100°C
Body material CPVC
Sealing material F46/PFA
Connection Flange

CPVC diaphragm valve

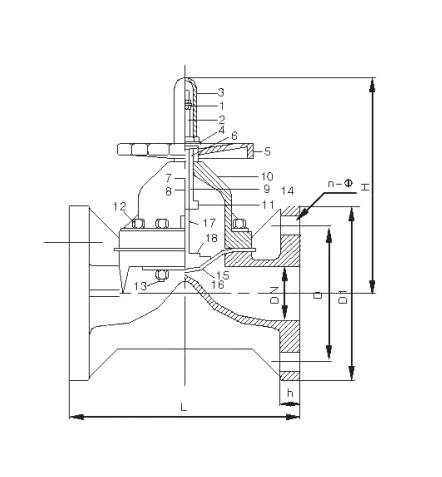

NO. Name Material
1 Stud Steel
2 Indicator Steel
3 Cover Limit AS
4 Snap Rings Steel
5  Handwheel ABS
6 Pressed nut CPVC
7 Liner ring PTFE
8 Yoke nut HT300/Steel copper
9 Stem  Steel
10 Bonnet CPVC
11 Bearing Single force ball bearing
12 Nut Steel
13 Stud Steel
14 Body CPVC
15 Membrane pad EPDM
16 Diaphragm FEP(F46)
17 Pin Steel
18 Disc PVDF/ FRP/cast iron
DN D1 D I H N O
HG JIS DIN ANSI HG JIS DIN ANSI kJ HG JIS DIN ANSI HG JIS DIN ANSI
15 95 65 70 65 50 125 110 130 110 14 125 4 4 4 4 14 15 14 16
20 105 75 75 75 70 135 120 150 120 16 145 4 4 4 4 14 15 14 16
25 115 85 90 85 80 145 130 160 130 16 148 4 4 4 4 14 19 14 16
32 135 100 160 16 165 4 18
40 145 1 10 105 110 100 180 180 200 180 16+ 215 4 4 4 4 18 19 18 16
50 160 125 120 125 120 210 210 230 210 18 227 4 4 4 4 18 19 18 19
65 180 145 140 145 140 250 250 290 250 22 286 4 4 4 4 18 19 18 19
•80 195 160 150 160 152 300 280 310 280 25 300 4 8 8 8 18 19 18 19
100 215 180 175 180 190 350 340 350 340 25 407 8 8 8 8 18 19 18 19
125 245 210 210 210 216 400 410 400 410 30 417 8 8 8 8 18 23 18 19
150 280 240 240 240 240 460 480 480 480 30 576 8 8 8 8 23 23 23 22
200 335 295 290 290 298 570 570 600 570 35 628 8 12 8 8 23 23 23 22
250 395 350 355 355 362 680 680 730 680 38 776 12 12 12 12 23 23 23 22
300 455 400 400 400 432 790 40 800 12 16 12 12 23 23 23 25

CPVC Diaphragm Valve Options

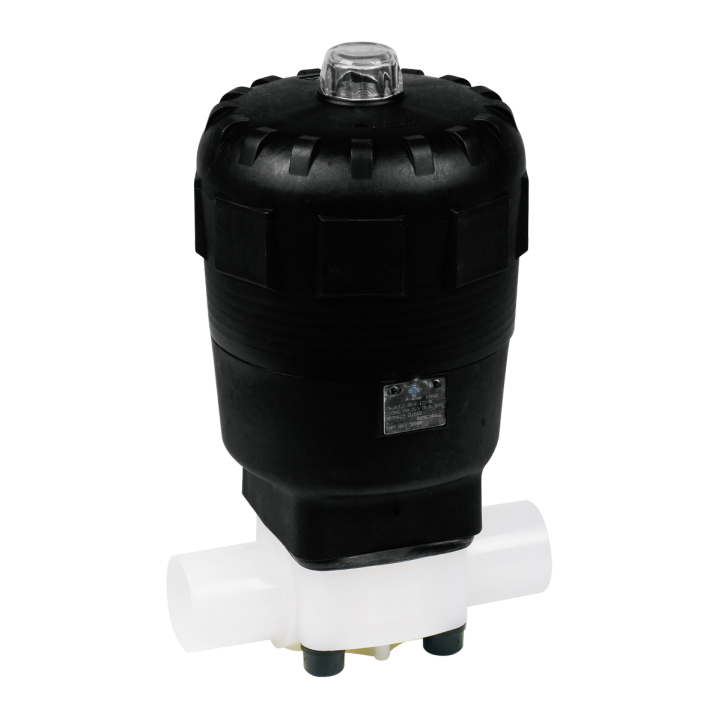

Plastic pneumatic actuator

  • Plastic actuator body
  • Visual position indication
  • Insert/outlet stainless steel
  • NAMUR adaptor for solenoid valve (with adaptation for K122 and K123)
  • PO-NC (single acting: fail safe close), PO-NO (single acting: fail safe open), PO-DA (double acting)

plastic pneumatic actuator

CPVC Diaphragm Valve Applications

The valve body suits many mediums including hydrochloric acid, sulfate acid, hydrofluoric acid, as well as aqua regia, nitric acid, organic acids, and other organic solvents except molten alkali metals, elemental fluorine either aromatic hydrocarbons.
