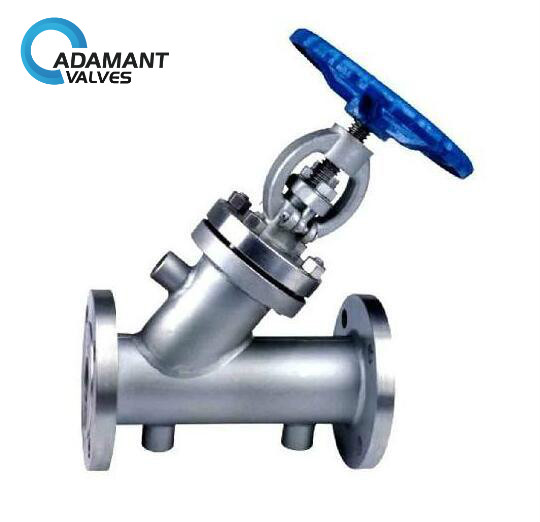

AV-21YG High Performance Y Type Globe Valve with Insulation Jacket, Worm Gear Operator, Flanged

Availability : In stock

Specifications:

Size DN15-DN150
Working temperature <550°C
Working pressure 0.6-6 Mpa
Body material 304/316L
Sealing material PTFE
Connection Flange

High-Performance Y Type Globe Valve Description:

The insulation jacket is welded between the two flanges of the valve, and two connection ports of the insulation jacket are provided on the side and bottom of the valve. The DC insulation globe valve is especially suitable for pipelines in the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing. It is used in the pipelines of the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing.

High Performance Y Type Globe Valve

High-Performance Y Type Globe Valve Specifications:

Size DN15-DN150
Working temperature <550°C
Working pressure 0.6-6 Mpa
Body material 304/316L
Sealing material PTFE
Connection Flange

High Performance Y Type Globe Valve

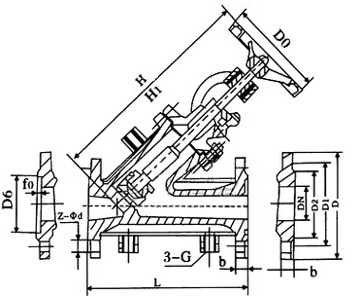

DN L D D1 D2 D3 B1 f0 B D6 3-G Z-Φd H H1 D0
15 170 105 75 55 35 8 4 16 51 3/8 4-Φ14 250 262 120
20 190 115 85 65 42 8 4 16 58 3/8 4-Φ14 292 308 140
25 210 135 100 78 50 8 4 18 66 3/8 4-Φ18 340 375 160
32 230 145 110 85 60 8 4 18 76 1/2 4-Φ18 338 375 160
40 260 160 125 100 72 8 4 20 88 1/2 4-Φ18 360 386 160
50 300 180 145 120 94 8 4 22 110 1/2 8-Φ18 410 450 240
65 340 195 160 135 105 8 4 22 121 1/2 8-Φ18 440 485 240
80 380 230 190 160 128 11 4.5 24 150 1/2 8-Φ23 540 600 280
100 430 270 220 188 154 11 4.5 28 176 1/2 8-Φ25 560 625 320
125 490 300 250 218 182 11 4.5 30 204 1/2 8-Φ25 625 737 360
150 550 330 280 248 212 11 4.5 32 204 1/2 12-Φ25 720 790 360

High-Performance Y Type Globe Valve Options:

End connection can be butt-welded or sanitary tri-clamp, and others are available upon request.

High-Performance Y Type Globe Valve Applications:

Insulation globe valves are mainly used in petroleum, chemical, metallurgy, pharmaceutical, and other systems to transport high-viscosity media that will solidify at room temperature.
