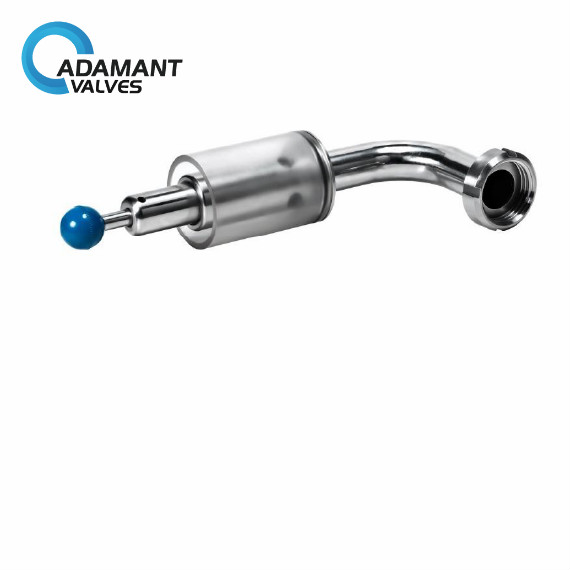

AV-9E Sanitary Threaded Safety Exhaust Valve with Glass Window

Availability : In stock

Specifications

Size 0.75”-1.5”
Max working temperature 121°C
Working pressure 0-3bar/ 0-6bar
Body material 304/316L
Sealing material EPDM, NBR, FPM
Connection Clamp, welded, threaded, flange
Standards DIN, SMS, RJT, IDF, 3A

Sanitary Threaded Safety Exhaust Valve with Glass Window Description

Sanitary Threaded Safety Exhaust Valve with Glass Window is normally closed. The pressure is set by spring with pressure nut. When the pressure in the pipe exceeds the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure. The valve can be with handle to realize partial open. When the handle remains open on the spot, liquid can flow through the valve.

Adamant Valves is a global sanitary valves manufacturer and valves supplier that provides customers with high-precision Sanitary Threaded Safety Exhaust Valve with Glass Window at a very competitive price.

safety exhaust valve

Sanitary Threaded Safety Exhaust Valve with Glass Window Specifications

Size 0.75”-1.5”
Max working temperature 121°C
Working pressure 0-3bar/ 0-6bar
Body material 304/316L
Sealing material EPDM, NBR, FPM
Connection Clamp, welded, threaded, flange
Standards DIN, SMS, RJT, IDF, 3A

Safety exhaust valve

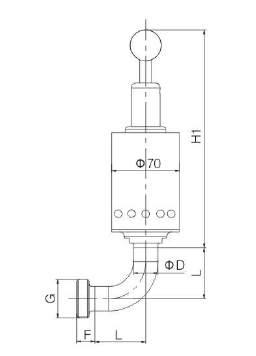

SIZE D H1 D1 L E F G
0.75″ 19 225 25.4 38 12.7 19
1″ 25.4 225 50.5 52.4 12.7 18 Rd40*1/6
1.25″ 31.8 225 50.5 69.7 12.7 20 Rd48*1/6
1.5″ 38.1 225 50.5 74.6 12.7 20 Rd60*1/6

Sanitary Threaded Safety Exhaust Valve with Glass Window Options

  • Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)
  • Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.
  • Pressure range adjustable (by calibrating spring).

Sanitary Threaded Safety Exhaust Valve with Glass Window Applications

–        The safety valve is used to protect pipe lines, pumps from over pressure

–        Pressure relief design prevents operation danger and equipment brake down

–        With pure stainless-steel design, the valve is the best choice for protecting equipment in diary, food, beverage, pharmaceutical and fine chemical industries.
