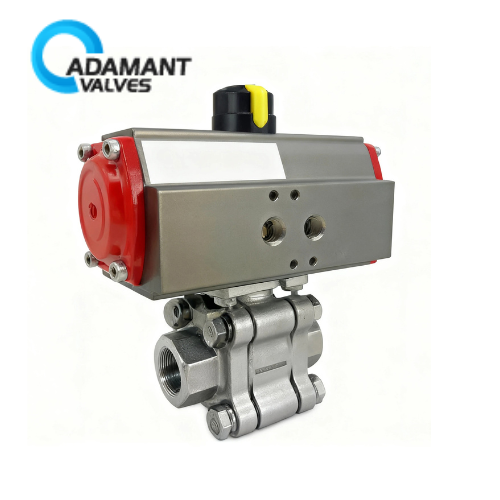

AV-2-S0607 Air Actuated High Pressure Ball Valves – Scotch Yoke (1-1/4 NPT)

Air Actuated High Pressure Ball Valves – Scotch Yoke (1-1/4 NPT) Description

The valve is intended for controlled fluid management in sanitary systems operating at high pressures. It serves applications where maintaining process integrity under rigorous conditions is required.

Key Features:
– Actuation Mechanism: Utilizes an air-actuated Scotch Yoke design to convert pneumatic input into precise ball movement.
– High-Pressure Operation: Engineered to perform at 2000 PSI, addressing demanding pressure environments.
– Material Construction: Made from stainless steel to meet sanitary conditions and chemical resistance requirements.
– Seal Integrity: Employs braided graphite/(FKM) Viton seals that offer resilient isolation against process fluids.
– Maintenance Accessibility: The design supports straightforward disassembly for inspection and routine maintenance.

Air Actuated High Pressure Ball Valves – Scotch Yoke (1-1/4 NPT) Specifications

*The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Air Actuated High Pressure Ball Valves – Scotch Yoke (1-1/4 NPT) Applications

• Chemical Processing: Used in fluid control systems where sanitary handling of high-pressure chemicals is required.
• Pharmaceutical Manufacturing: Applied for precise fluid management in processes that demand hygienic conditions.
• Food and Beverage: Utilized to control high-pressure fluid flow under sanitary process environments.
• Water Treatment: Employed in systems requiring strict sanitary standards combined with high-pressure operation.
