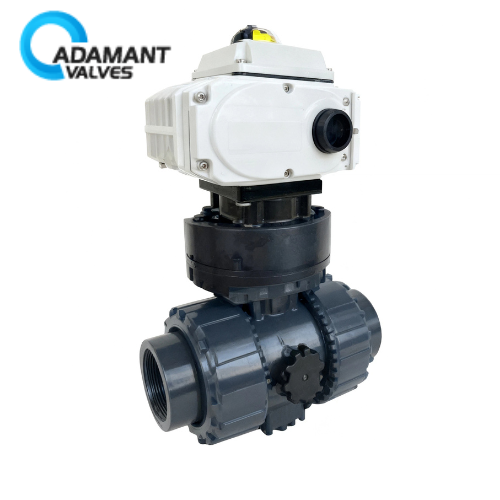

AV-2-S0639 Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (1-1/4 NPT)

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (1-1/4 NPT) Description

The Electric Actuated PVC Ball Valve is designed for controlled fluid management in sanitary systems. It is applicable in sectors such as food processing, water treatment, pharmaceuticals, and chemical processing.

Key Features:
– Electrical Actuation: Uses AC 110 with an EPS positioner accepting a 4-20mA input for integration with control systems.
– PVC Construction: Employs PVC material to support sanitary conditions and chemical inertness.
– Sealing System: Incorporates Teflon/EPDM seals to effectively maintain isolation and prevent leakage.
– Cycle Performance: Achieves a 90° rotation in 21 seconds, supporting timed operation.
– Pressure Handling: Rated for operation at 232PSI, suitable for moderate pressure conditions.

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (1-1/4 NPT) Specifications

Parameter	Value
Size	1-1/4 NPT
Material	PVC
Pressure	232PSI
Seal Options	Teflon/EPDM
90° Cycle Time	21 s
Voltage	AC 110

The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Electric Actuated PVC Ball Valves 110 VAC with EPS Positioner 4-20mA Input (1-1/4 NPT) Applications

Food & Beverage: Utilized for regulated fluid control within processing lines to maintain sanitary conditions.
Pharmaceuticals: Applied for precise liquid management in sterile production environments.
Water Treatment: Implements controlled actuation for flow regulation in water distribution systems.
Chemical Processing: Supports precise dosing and isolation in chemical handling applications.
Industrial Automation: Integrates into automated systems to control fluid pathways effectively.
