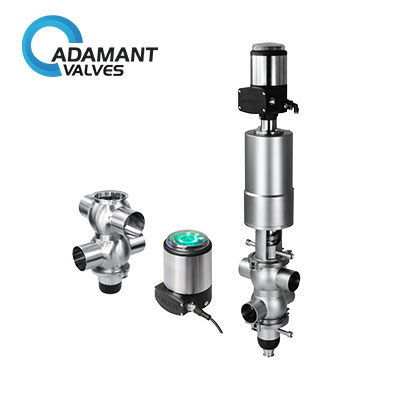

AV-5-S0433 Mixproof Valve / Double Seat Valve

Availability : In stock

Specification	DN40 – 1.5″ to DN100 – 4″
Certificates	3-A-85-03, PED 97/23/EC, FDA 177.2600
Pressure	≤10 bar
Temperature	-10°C to +130°C
Connection Type	Welded connection (mm or inch)

Connection Type

Welded connection (mm or inch)

Mixproof Valve / Double Seat Valve Description

Mixproof Valve, also known as a Double Seat Valve, is a hygienic flow control solution designed for advanced fluid processing applications. It is widely used in the beverage, dairy, and other sanitary industries, where strict separation of different product streams is essential.

This valve features a high-performance double-seal design, allowing two different fluids to flow through the same valve body simultaneously without risk of cross-contamination. A dedicated leakage chamber with integrated leak detection is located between the two seals. This chamber can be automatically cleaned by the valve seat, ensuring hygienic operation and enhanced process safety.

Key Advantages

Prevents contamination between different product flows.
Ensures product safety with reliable double-seal technology.
Integrated leakage chamber with leak detection for enhanced monitoring.
Self-cleaning design reduces maintenance and supports CIP (Clean-in-Place) processes.

Mixproof Valve / Double Seat Valve Specifications

Specification	Details
Size Range	DN40 – 1.5″ to DN100 – 4″
Actuator	Normally closed pneumatic actuator
Valve Body	Forged ball valve body
Leak Detection	Visible fluid leak from bottom indicates seal damage
Maintenance	Easy to remove (clamps only)
Connection Type	Welded connection (mm or inch)
Design Feature	Balance protection design
Max. Operating Pressure	10 bar
Min. Operating Pressure	Absolute vacuum
Working Temperature	-10 °C to 130 °C (up to 140 °C for short periods or disinfection)
Certificates	3-A-85-03, PED 97/23/EC, FDA 177.2600
Compressed Air Pressure	5–7 bar
Gas Connection	R1/8″ (BSP)

Mixproof Valve / Double Seat Valve Applications

Beverage Industry: hygienic separation of product lines in juice, beer, and soft drink processing.
Dairy Industry: safe and efficient milk and dairy product handling.
Food, Pharmaceutical, and Fine Chemicals: ensuring contamination-free and sterile operations.
