AV-27CL Compression Load Cells

Availability : In stock

Accuracy: ±0.5% of full scale + indicator

Safe Overload: 150% of full scale

Weight:

MR02-100 – MR02-2000: 0.3 lb [0.1 kg]

MR02-5000-MR02-10000: 0.5 lb [0.2 kg]

SKU: AV-27CL Category: Manual Valves

* Minimum Order Quantity (MOQ): 10 pieces for sizes below 2"; 5 pieces for sizes 2" and above.

Compression Load Cells Description

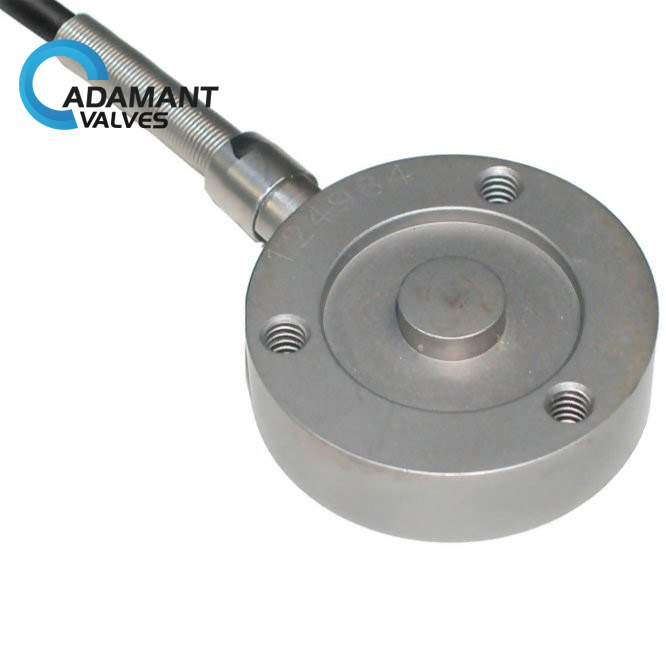

Compression Load Cells are designed for compression measurement applications in virtually every industry. Compact and rugged sensors are ideal for heavy-duty applications with space constraints. Capacities are available from 100 to 10,000 lbF [500 N to 50 kN].

Compression Load Cells is a low-capacity load cells. It can be used for high-precision measurement because the internal structure uses both ends of fixation beams for the strain-sensing element.

Compression Load Cells Specifications

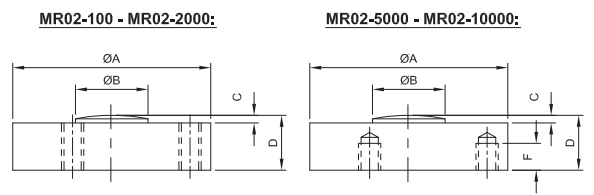

Model No.	∅A	∅B	C	D	∅E	F	∅G
MR02-100 – MR02-2000	1.2 [31.3]	0.32 [8.1]	0.05 [1.3]	0.39 [9.9]	1.0 [25.4]	THRU	0.83 [21.1]
MR02-5000 – MR02-10000	1.48 [37.6]	0.43 [10.9]	0.07 [1.8]	0.62 [15.8]	1.25 [31.8]	0.25 [6.4]	1.08 [27.4]

Capacity x Resolution

Model No.	With Models 7i & 5i indicators						With Model 3i indicator
Model No.	lbF	ozF	gF	kgF	N	kN	lbF	kgF	N	kN
MR02-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	–	100 x 0.1	50 x 0.05	500 x 0.5	–
MR02-200	200 x 0.1	3200 x 2	–	100 x 0.05	1000 x 0.5	1 x 0.0005	200 x 0.2	100 x 0.1	1000 x 1	–
MR02-500	500 x 0.2	8000 x 5	–	250 x 0.1	2500 x 1	2.5 x 0.001	500 x 0.5	250 x 0.2	2500 x 2	–
MR02-1000	1000 x 0.5	16000 x 10	–	500 x 0.2	5000 x 2	5 x 0.002	1000 x 1	500 x 0.5	5000 x 5	–
MR02-2000	2000 x 1	32000 x 20	–	1000 x 0.5	10000 x 5	10 x 0.005	2000 x 2	1000 x 1	10000 x 10	–
MR02-5000	5000 x 2	–	–	2500 x 1	25000 x 10	25 x 0.01	5000 x 5	2500 x 2	–	25 x 0.02
MR02-10000	10000 x 5	–	–	5000 x 2	50000 x 25	50 x 0.02	10000 x 10	5000 x 5	–	50 x 0.05
