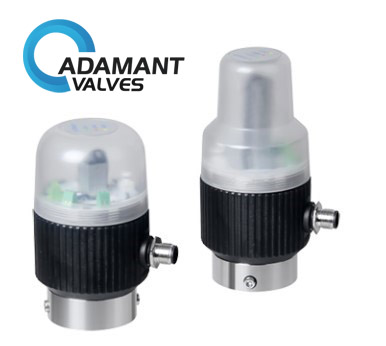

AV-1553 Valve Position Feedback F-TOP-1553

Availability : In stock

Material of Sensor: Stainless steel, Ceramic

Functions:

Feedback Output: PNP DC 24V & 4-20mA

Power supply: DC24V ± 10%

Accuracy: Repeat positioning accuracy ≤ 0.2%;

Leak prevention diagnostic function

Display: three-segment lamp color

Open: green / red

Close: red / green

Middle position: yellow, suitable for mixing proof valve

Travel range: 0-60mm/0-30mm

SKU: AV-1553 Category:

Valve Position Feedback F-TOP-1553 Description

Valve Position Feedback F-TOP-1553 is a straight-stroke pneumatic valve position feedback device designed primarily for valve process position feedback. It is compatible with most PLC (Programmable Logic Controller) automation systems with digital communication. Including position feedback output, three-segment LED display, anti-leakage function, etc., used to control all types of process valves. It can be installed on various pneumatic valves, such as pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, reversing valves, etc.

Valve Position Feedback F-TOP-1553 Specifications

Feedback Output: PNP DC 24V & 4-20mA

Power supply: DC24V ± 10%

Accuracy: Repeat positioning accuracy ≤ 0.2%;

Leak prevention diagnostic function

Display: three-segment lamp color

Open: green / red

Close: red / green

Middle position: yellow, suitable for mixing proof valve

Travel range: 0-60mm/0-30mm

Valve Position Feedback F-TOP-1553 Applications

Valve Position Feedback F-TOP-1553 can be installed on various pneumatic valves, such as pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, reversing valves, etc.

Related products: Valve Control Unit 1711, Valve Control Unit 1881, AV-24P Sanitary Proportional Valves
