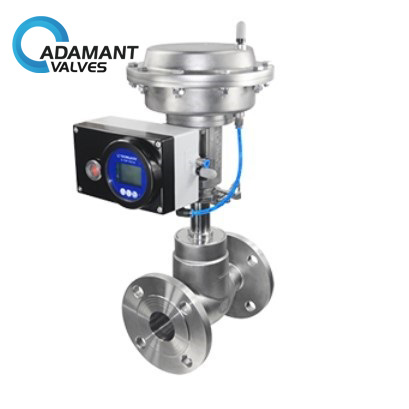

AV-21DT Diaphragm Type Pneumatic Globe Valve with Positioner
Size: DN25-DN100 to 1″-4″
Material: ASTM304/316L, 1.4301/1.4404
Working temperature: -10℃ to +120℃ (EPDM)
Working pressure: 10bar 145PSI
Compressed air: 4-7bar
Diaphragm Type Pneumatic Globe Valve with positioner Description
Diaphragm type pneumatic globe valves with positioner are pneumatic proportional valves, flow control design devices for the dairy and food processing industries, beverage production, pharmaceutical, and fine chemical industries. The most important applications are pressure control, flow control, liquid level, etc.
The pneumatic control valve is the position of the conical valve core. The valve (PD) that realizes flow regulation through the positioner control can also realize the self-adjusting position and flow (PID) function by using the intelligent process controller.
Diaphragm Type Pneumatic Globe Valve with positioner Specifications
| Size: | DN25-DN100 to 1″-4″ |
| Material: | ASTM304/316L, 1.4301/1.4404 |
| Working temperature: | -10℃ to +120℃ (EPDM) |
| Working pressure: | 10bar 145PSI |
| Compressed air: | 4-7bar |
| Voltage: | 24V DC ±10% |
| Analog signal input and output: | 4…20 mA 0…10V |
| Certification: | 3-A-53-06; PED-97/23/EC; FDA177.2600; EEX DII BT4 |
Diaphragm Type Pneumatic Globe Valve with positioner Applications
It is used for the dairy and food processing industries, beverage production, pharmaceutical, and fine chemical industries.
Related products: AV-21FG Flanged Globe Valve, AV-21MF Sanitary Manual Female Globe Valve, AV-21MG Sanitary Manual 2-Way Globe Valve With Welded End, Manual Type
Be the first to review “AV-21DT Diaphragm Type Pneumatic Globe Valve with Positioner”
Related Products

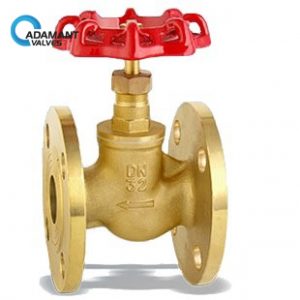

AV-21FB Flanged Brass Globe Valve

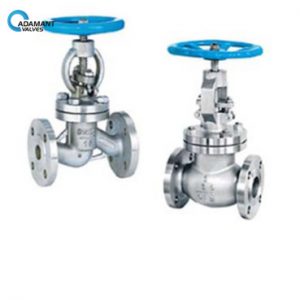

AV-21FG Flanged Globe Valve
AV-21MF Sanitary Manual Female Globe Valve
AV-21YG High Performance Y Type Globe Valve with Insulation Jacket, Worm Gear Operator, Flanged

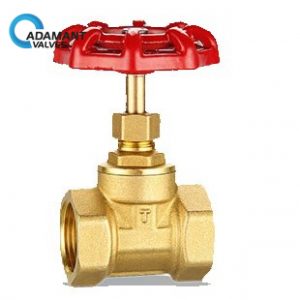

AV-21TB Threaded Brass Globe Valve
