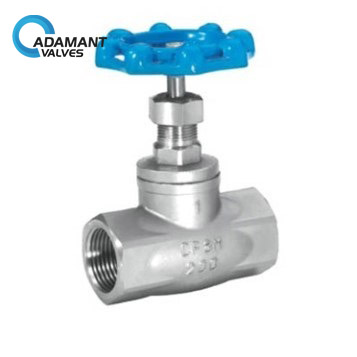

AV-21MF Sanitary Manual Female Globe Valve

Availability : In stock

Material: CF8, CF8M
Specifications: DN8-DN50, 1/2”-2”
Nominal pressure: PN1 .6, 2.5, 4.0, 6.4 MPa
Strength test pressure: 4, 3.8, 6.0, 9.6 MPa
High pressure seal pressure test: 8, 2.8, 4.4, 7.1 MPa
Applicable medium: J11W- (16-64) C water, oil, gas, J11W- (16-64) P nitric acid, J11W- (16-64) R acetic acid
Applicable temperature: -40 ~ 180℃

Sanitary Manual Female Globe Valve Description

A globe valve is a linear motion valve used to stop, start, and regulate fluid flow. The globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

Sanitary Manual Female Globe Valve Specifications

Size	1/2”-2”, DN8 – DN50
Nominal pressure	PN1 .6, 2.5, 4.0, 6.4 MPa
Strength test pressure	PT2.4, 3.8, 6.0, 9.6 MPa
High pressure seal pressure test	1.8,2.8,4.4,7.1MPa
Applicable temperature	-40 ~ 180 ℃
Material	CF8, CF8M

DN	G	L	E	B	H	W
8	1/4”	65/68	15	23	80	70
10	3/8”	65/68	15	26	80	70
15	1/2”	65/65	16	31	88	70
20	3/4”	70/75	18	38	95	70
25	1”	80/90	20	46	110	80
32	1	90/105	21.5	56	123	100
40	1	100/120	23	63	135	100
50	2”	120/140	24.5	76	150	100

Sanitary Manual Female Globe Valve Applications

Sanitary Manual Female Globe Valve is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, and many other automated machinery and equipment. It featured water hammer protection, noise-free, reliable sealing performance.
