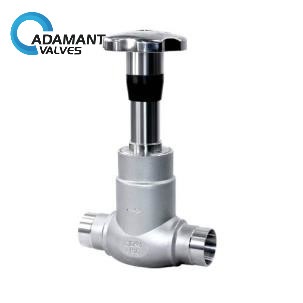

AV-21MG Sanitary Manual 2-way Globe Valve With Welded End

Availability : In stock

Specifications:

Size 1/2”-3”, DN10-DN80
Working temperature 130°C or 180°C
Working pressure ≤8 bar or ≤10 bar
Body material CF8/304, CF8M/316
Sealing material PTFE
Connection Tri-Clamp, threaded, flange, welded
Finishing Ra≤0.8 μm

Sanitary Manual 2-way Globe Valve Description

A sanitary globe valve is a linear motion valve used to stop, start, and regulate the fluid flow. The sanitary globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

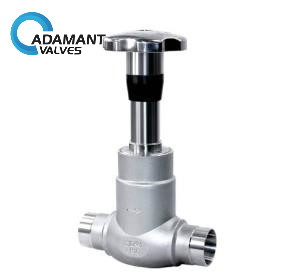

manual 2 way globe valve

Sanitary Manual 2-way Globe Valve Specifications

Size 1/2”-3”, DN10-DN80
Working temperature 130°C or 180°C
Working pressure ≤8 bar or ≤10 bar
Body material CF8/304, CF8M/316
Sealing material PTFE
Connection Tri-Clamp, threaded, flange, welded
Finishing Ra≤0.8 μm

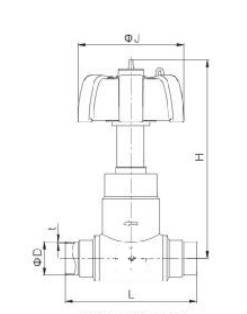

manual globe valve D J L H
25.4 87.2 130 275
31.8 114 140 295
38.1 114 150 295
50.8 138 175 360
63.5 138 210 386
76.2 138 210 390

Sanitary Manual 2-way Globe Valve Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

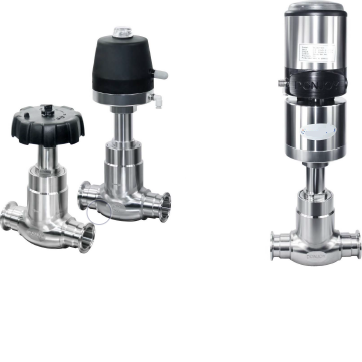

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

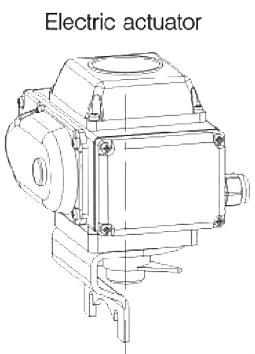

stainless steel actuatoraluminum actuatorselectric actuator

Sanitary Manual 2-way Globe Valve Applications

The stop valve is a general switch in the automatic control system. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, and many other automated machinery and equipment. It featured with water hammer protection, noise-free, reliable sealing performance.
