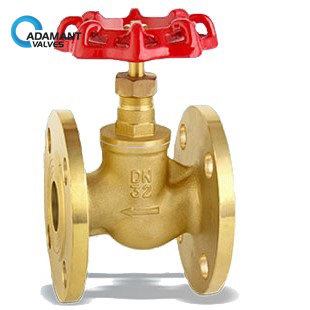

AV-21FB Flanged Brass Globe Valve

Availability : In stock

Materials: brass/bronze

Size: DN15-DN150

Max Temp. : -20℃-120℃

Set Pressure: 1.6MPa

Applicable Medium: water, non-corrosive medium

SKU: AV-21FB Category:

Flanged Brass Globe Valve Description

Flanged Brass Globe Valve is a flow regulating part in the pipeline system that pushes the valve disc to move vertically along the centerline of the valve seat through the rotation of the handwheel. During working hours, the friction between the disc and the sealing surface of the valve body is small, the opening and closing torque are small, and it is wear-resistant. The opening height is generally 1/4 of the diameter of the valve seat. There is only one sealing surface for easy maintenance, and the medium flows in one direction.

Flanged Brass Globe Valve Specification

flanged brass globe valve

15 79 90 81 78
20 89 100 85 78
25 93 110 98 108
32 110 134 125 108
40 132 140 136 108
50 172 153 173 146

Flanged Brass Globe Valve Applications

Flanged Brass Globe Valve is widely used in central air conditioning and HVAC systems.
