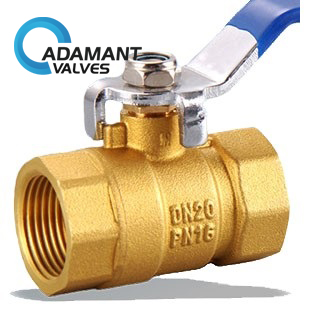

AV-2TBV Threaded Brass Ball Valve
Availability :
In stock
Materials: brass/bronze
Size: DN15-DN50
Max Temp. : -10℃-120℃
Set Pressure: 1.0-1.6MPa
Applicable Medium: water, non-corrosive medium
Threaded Brass Ball Valve Description
Threaded Brass Ball Valve is mainly used for cutting, distributing and changing the flow direction of the medium on the pipeline. Its opening and closing part is a sphere, and the opening and closing are realized by rotating the sphere 90° around the axis of the valve stem.

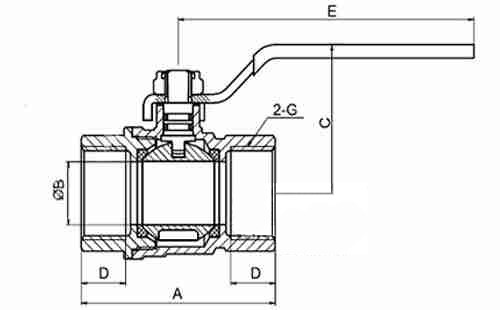

Threaded Brass Ball Valve Specification
| DN | A | B | C | E |
| 15 | 53 | 13 | 44 | 99 |
| 20 | 58 | 15 | 51 | 111 |
| 25 | 72 | 20 | 55 | 111 |
| 32 | 79 | 25 | 62 | 141 |
| 40 | 91 | 32 | 66 | 141 |
| 50 | 105 | 40 | 79 | 161 |
Threaded Brass Ball Valve Applications
Threaded Brass Ball Valve is mainly used for cutting, distributing and changing the flow direction of the medium on the pipeline.
