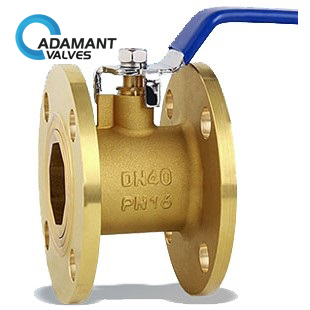

AV-2FB Flanged Brass Ball Valve
Availability :
In stock
Materials: brass/bronze
Size: DN15-DN150
Max Temp. : -10℃-120℃
Set Pressure: 1.0-1.6MPa
Applicable Medium: water, non-corrosive medium
Flanged Brass Ball Valve Description
Flanged Brass Ball Valve is mainly used for cutting, distributing, and changing the flow direction of the medium on the pipeline. Its opening and closing part is a sphere, and the opening and closing are realized by rotating the sphere 90° around the axis of the valve stem.

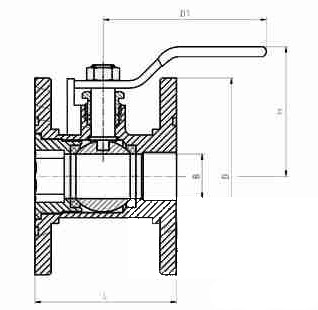

Flanged Brass Ball Valve Specification
| DN | L | D1 | H | D | n-d |
| 25 | 78 | 115 | 80 | 95 | 4–14 |
| 32 | 80 | 115 | 95 | 105 | 4-14 |
| 40 | 84 | 130 | 96 | 115 | 4-14 |
| 50 | 93 | 150 | 105 | 140 | 4-18 |
| 65 | 106 | 150 | 128 | 150 | 4-18 |
| 80 | 108 | 195 | 129 | 155 | 4-18 |
| 100 | 112 | 236 | 151 | 180 | 4-18 |
| 125 | 127 | 236 | 175 | 195 | 8-14 |
Flanged Brass Ball Valve Applications
Flanged Brass Ball Valve is mainly used for cutting, distributing and changing the flow direction of the medium on the pipeline.
