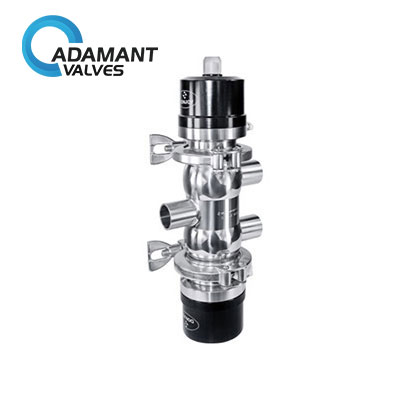

AV-4-S0410 Multi-Channel Radial Diaphragm Valve

Availability : In stock

Specification	3/4″ – 2.5″, DN20 – DN65
Material	ASTM 316L, 1.4404, 1.4435 NB2 Fe < 0.5%
Connection Types	Weld, Clamp, Other special connections
Temperature	-10℃ to 120℃ (EPDM/Silicon)
Operation	Manual/Pneumatic interchangeable

Multi-Channel Radial Diaphragm Valve Description

Multi-Channel Radial Diaphragm Valve is a versatile, high-performance valve designed to meet the stringent requirements of various industries, including pharmaceutical, biotechnology, healthcare, cosmetics, and food processing. With its advanced radial diaphragm design, this valve ensures precise fluid control, reliability, and sanitary performance, making it ideal for both manual and pneumatic operations.

Key Features:

Multi-Channel Design: Allows the control of multiple fluid channels simultaneously, making it perfect for complex fluid systems where efficient flow distribution or diversion is required.

Manual/Pneumatic Operation: Flexible operation options allow users to choose between manual and pneumatic actuation, catering to different operational needs.

Durable Construction: Manufactured from high-quality materials with an inner body finished to Ra ≤0.5 μm, ensuring durability and meeting biopharmaceutical industry cleanliness standards.

Versatile Applications: Ideal for use in pharmaceutical, biotech, food, cosmetic, and healthcare industries.

Sanitary Design: Designed to meet the hygiene and sterility standards of industries like pharmaceuticals and food processing, where contamination-free operations are critical.

Multi-Channel Radial Diaphragm Valve Specifications

Specification	Details
Size	3/4″ – 2.5″, DN20 – DN65
Working Temperature	-10℃ to 120℃ (EPDM/Silicon)
Max Pressure	6 bar
Operation	Manual/Pneumatic interchangeable
Actuator Pressure	5 bar – 6 bar
Connection Types	Weld, Clamp, Other special connections

Multi-Channel Radial Diaphragm Valve Applications

Pharmaceutical Industry: Used as a process control valve, dosing valve, sampling valve, and aseptic drain valve, ensuring precise fluid handling in drug production and research environments.

Biotech Industry: Plays a crucial role in various biotechnological processes, including fluid transfer, media control, and sterile fluid handling.

Healthcare: Essential for regulating fluids in medical equipment or systems that require high levels of cleanliness and precision.

Cosmetic Industry: Used for precise dosing, ingredient mixing, and fluid handling in cosmetic production processes.

Food Industry: Frequently used as a guide device for dosing or sampling, such as adding CO2 or nitrogen to beer or seasoning drinks.
