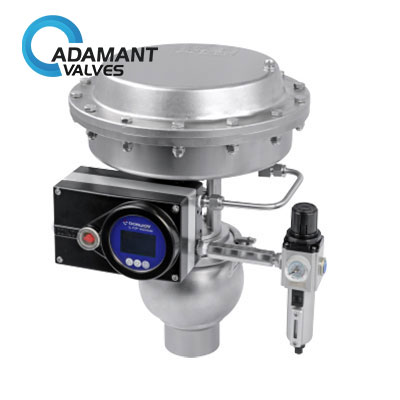

AV-5-S0423 Film-Type Single Seat Valve

Availability : In stock

Specification	1/2″ – 6″, DN10 – DN150
Material	316L / 1.4404, ASME BPE 316L 1.4435 NB2 Fe ≤ 0.5%
Pressure	Vacuum to 10 bar (1.0 MPa)
Temperature	-20°C to +150°C
Connection Method	Threaded, Clamp, Welding, Flange

Film-Type Single Seat Valve Description

Film-Type Single Seat Valve is a versatile and high-performance valve designed for precise fluid control in demanding industrial applications. Its flexible valve body allows for a wide range of functional configurations, making it suitable for processes that require strict hygienic and operational standards.

Key Features:

Flexible Body Design: The valve body supports multiple configurations, including aseptic, sterilization-capable, diaphragm type, adjustable valve position, jacketed insulation, damping buffer, and double-seat options.

Automation Ready: Can be equipped with automatic positioners, control heads, feedback devices, and position sensors to enable seamless integration with automated process control systems.

Precise Flow Control: The film-type design ensures accurate and reliable fluid regulation, reducing the risk of contamination or leakage in critical processes.

Hygienic and Sterilizable: Suitable for applications requiring high sanitary standards, including sterilization processes in pharmaceutical, food, and biotechnology industries.

Durable and Reliable: Built to withstand demanding operating conditions, ensuring long service life and consistent performance.

Film-Type Single Seat Valve Specifications

Specification	Details
Size	1/2″ – 6″, DN10 – DN150
Material	316L / 1.4404, ASME BPE 316L 1.4435 NB2 Fe ≤ 0.5%
Pressure	Vacuum to 10 bar (1.0 MPa)
Temperature	-20°C to +150°C, depending on seal material
Seal	EPDM, FKM, HNBR, PTFE
Connection Standard	DIN, SMS, ISO, IDF, RJT, BS4825, ASME BPE, 3A, DIN11864, DIN11853
Connection Method	Threaded, Clamp, Welding, Flange
Drive Mode	Manual, Pneumatic, Electric
Surface Roughness	Ra ≤ 0.6 μm; MP = Ra ≤ 0.3 μm; EP = Ra ≤ 0.3 μm
Certification	FDA 177.2600; 3A-53-07; Glass II USP Glass VI Chapter 88; EG VO/1935-2004; PED/97/23/EC
