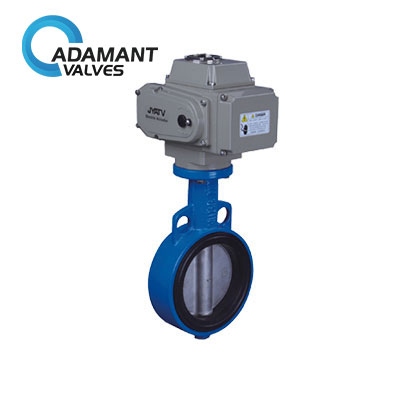

AV-1-S0421 Electric Wafer Butterfly Valve

Availability : In stock

Specification	1.5″ – 12″, DN40 – DN300
Material	CF3M (316L), CF8 (304), Stainless Steel + PFA
Connection	Clip Type, Lug Type
Temperature	-20°C to +130°C
Drive Mode	Manual, Pneumatic, Electric

Electric Wafer Butterfly Valve Description

Electric Wafer Butterfly Valve is a high-performance clip-on centerline butterfly valve designed for precise fluid control in industrial applications. Its robust construction features a ring-shaped seat, an elastic lining, and a disc that rotates 90° via the valve shaft to regulate fluid flow. This valve is suitable for both liquids and, with proper material selection, gases, providing versatile performance across a range of industrial processes.

Key Features:

Electric Actuation: Equipped with an electric actuator, the valve allows automated operation for precise and reliable control of flow, reducing manual intervention.

Wide Pressure and Temperature Range: Depending on model and size, the valve can handle working pressures up to 25 bar and media temperatures up to 210°C.

Versatile Fluid Handling: Primarily used for controlling pure liquids, the valve can also accommodate other media, including gases, through appropriate material selection.

Durable and Corrosion-Resistant Materials: Available with a wide range of materials, including PFA-encapsulated discs for aggressive chemical media and polished stainless steel discs for hygienic applications.

Economic and Efficient: Offers a cost-effective solution for large pipeline systems (DN > 150), particularly in processes where frequent operation, high hygienic standards, or precise control are not critical.

Electric Wafer Butterfly Valve Specifications

Specification	Details
Size	1.5″ – 12″, DN40 – DN300
Material	Valve Body: CF8 (304); Valve Plate: CF3M (316L), CF8 (304), Stainless Steel + PFA
Pressure	PN10, PN16
Temperature	EPDM: -20°C to +130°C, other materials refer to data table
Seal	EPDM, Silicone, FKM, HNBR, NBR, PTFE, TFM
Connection Method	Clip Type, Lug Type
Drive Mode	Manual, Pneumatic, Electric

Electric Wafer Butterfly Valve Applications

Chemical Industry: Ideal for highly aggressive media, with PFA-encapsulated discs providing resistance to corrosion and chemical attack.

Water Treatment: Widely used in water treatment systems for reliable flow control in harsh operating conditions.

Food & Pharmaceutical Industry: Polished stainless steel discs meet sanitary standards for hygienic applications, ensuring safe and compliant operations.

Semiconductor Industry: Suitable for controlling corrosive or high-purity fluids where chemical resistance is critical.
