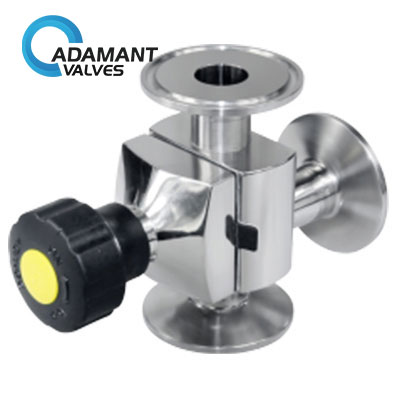

AV-4-S0407 Mini Multi-Port Diaphragm Valve
| Specification | 1/4″ – 3/4″, DN6-DN15 |
| Forged Body | 316L/1.4404, ASME BPE 316L, 1.4435 NB2 Fe ≤0.5% |
| Connection Types | Welding, Clamp, Flange, Threaded |
| Standards | BPE, 3A, DIN, ISO, IDF |
| Certifications | PED/97/23/EC, 3A-18-30, FDA 177.2600 |
Mini Multi-Port Diaphragm Valve Description
Mini Multi-Port Diaphragm Valve is a compact and versatile valve designed for precise control of multiple fluid lines in confined spaces. It features multiple ports for efficient fluid diversion or mixing, making it an ideal solution for applications in liquid sampling, biological systems, and laboratory settings where space and precision are critical.
Key Features:
Multi-Port Design: Allows for simultaneous control of multiple fluid lines, streamlining complex fluid systems in a compact form.
Space-Saving: Miniaturized design ideal for applications with space limitations, such as laboratories or small-scale processing systems.
Durable Construction: Made from high-quality materials like 316L stainless steel, ensuring resistance to corrosion and long-lasting performance.
Versatile Diaphragm Materials: Available with a range of diaphragm materials such as EPDM, PTFE, FPM, and Silicon to accommodate various fluid types and application needs.
Leak-Free Operation: The diaphragm ensures a tight, leak-proof seal, preventing contamination and ensuring safety.
Flexible Operation Modes: Can be operated manually or pneumatically, providing flexibility depending on the specific application.
Mini Multi-Port Diaphragm Valve Specifications
| Specification | Details |
| Size | 1/4″ – 3/4″, DN6-DN15 |
| Standards | BPE, 3A, DIN, ISO, IDF |
| Certifications | PED/97/23/EC, 3A-18-30, FDA 177.2600 |
| Max Temperature | -20 to 150℃ (depends on seal material, stainless steel actuator) |
| -20 to 130℃ (depends on seal material, plastic actuator) | |
| Max Pressure | Normally Closed Rubber 8 bar, PTFE 6 bar (optional) |
| Normally Closed Rubber 6 bar, PTFE 4.5 bar (standard) | |
| Normally Open & Double Acting Rubber 8 bar, PTFE 6 bar | |
| Forged Body | 316L/1.4404, ASME BPE 316L, 1.4435 NB2 Fe ≤0.5% |
| Cast Body | 1.4404/316L |
| Connection Types | Welding, Clamp, Flange, Threaded |
| Operation Type | Manual, Pneumatic |
Mini Multi-Port Diaphragm Valve Applications
Liquid Sampling: Widely used in chemical, pharmaceutical, and food industries for reliable sampling of liquids.
Biological Systems: Ideal for precise fluid handling in bioreactors, fermenters, and other biological processes.
Laboratories: Used in laboratory equipment and experimental setups where fluid handling and separation are required.
Fluid Mixing: Perfect for small-scale fluid mixing applications, where precise flow control is crucial.
Pharmaceuticals & Biotechnology: Ensures contamination-free and sterile fluid management in critical processes.
