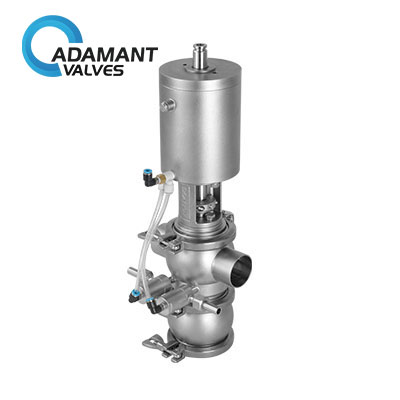

AV-5-S0432 Injet Type Mixing Proof Valve-EC Series
| Specification | 1.5″–4″ / DN40–DN100 |
| Material | AISI 304 / 1.4301, AISI 316L / 1.4404 |
| Pressure | ≤6 bar |
| Temperature | -10°C to +120°C |
| Seal Material | EPDM (FPM optional) |
Injet Type Mixing Proof Valve-EC Series Description
EC Series Injet Type Mixing Proof Valve is designed with precision to ensure process safety and hygienic operation in demanding applications. Its key components include an actuator, connecting bracket, valve stem, and valve body.
The actuator drives the valve stem to move linearly along the axial direction.
Upward movement: opens both the upper and lower pipeline channels.
Downward movement: closes the passage and isolates the flow.
The valve stem is equipped with two sealing rings, which form an independent sealing cavity together with the sealing surface of the valve body. This cavity is connected to a CIP (Clean-In-Place) valve, allowing for leak detection and thorough cleaning. This unique design provides effective prevention of cross-contamination between different media in the upper and lower pipelines.
Reliable leak detection capability. Full compatibility with CIP monitoring and cleaning requirements.
Injet Type Mixing Proof Valve-EC Series Specifications
| Specification | Details |
| Size Range | 1.5″–4″ / DN40–DN100 |
| Maximum Operating Pressure | 6 bar |
| Minimum Operating Pressure | Full vacuum |
| Operating Temperature | -10 °C to 120 °C (optional extension up to 150 °C) |
| Applicable Media | Water, oil, gas, and other compatible fluids |
| Connection Types | Clamp, Weld, Thread, Flange |
| Air Supply Pressure | 5–7 bar |
| Air Supply Port | G 1/8 |
| Metal Materials | AISI 304 / 1.4301, AISI 316L / 1.4404 |
| Seal Material | EPDM (FPM optional) |
| External Surface Finish | Matte, Sandblasted |
| Internal Surface Finish | Bright polish, Ra < 0.8 μm |
Injet Type Mixing Proof Valve-EC Series Applications
- Food & Beverage Industry: for safe separation of different product flows (e.g., milk, juice, beer).
- Pharmaceutical Processing: for sterile production and contamination prevention.
- Biotechnology & Fine Chemicals: where product integrity and hygiene are critical.
