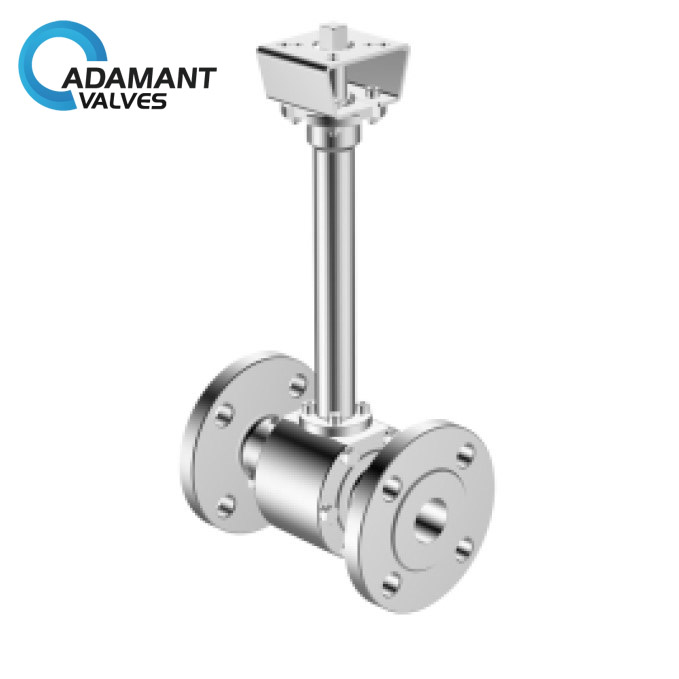

AV-2SC Sanitary Titanium Cryogenic Ball Valve

Availability : In stock
Size DN15-DN200 (1/2″~8″)
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Connection Clamp, welding, flange
Working Temp. -20 to 150℃
Working pressure PN16, PN25, PN40
SKU: AV-2SC Category:

Sanitary Titanium Cryogenic Ball Valve Description

Sanitary Titanium Cryogenic Ball Valve can work in cryogenic conditions. Valves with operating temperatures below -40℃ are usually called cryogenic valves, which are mainly used for gas liquefaction, separation, transportation, and storage equipment. The operating temperature can reach below -270℃.

Compared with the normal temperature valve, the low-temperature valve has a higher packing part and uses an extended stem. Its purpose is to reduce the heat transferred from the outside into the device; to ensure that the temperature of the stuffing box is above 0℃ so that the stuffing can work normally; to prevent the valve stem and the upper part of the valve cover at the stuffing box part from being too cold The parts are frosted or frozen.

Sanitary Titanium Cryogenic Ball Valve Specifications

Size DN15-DN200 (1/2″~8″)
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Connection Clamp, welding, flange
Working Temp. -20 to 150℃
Working pressure PN16, PN25, PN40



Sanitary Titanium Cryogenic Ball Valve Applications

In recent years, Sanitary Titanium Cryogenic Ball Valve (ultra-low temperature valve) has been widely used. It is one of the indispensable important equipment in petrochemical, air separation, natural gas and other industries. The working medium is not only low in temperature, but most of them are toxic, flammable, explosive, and strong permeability, so it determines many special requirements for valve materials and design.
