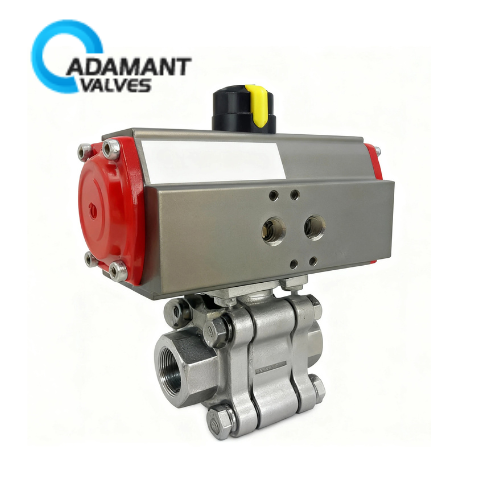

AV-2-S0609 Air Actuated High Pressure Ball Valves – Scotch Yoke (2 NPT)

Air Actuated High Pressure Ball Valves – Scotch Yoke (2 NPT) Description

The air actuated high pressure ball valves with Scotch Yoke mechanism are engineered for fluid control in sanitary systems and high-pressure pipelines. They serve industries such as water treatment, pharmaceutical processing, chemical manufacturing, and food and beverage production.

Key Features:
– Air Actuation: Utilizes compressed air to facilitate valve movement, allowing for swift and controlled operation.
– High Pressure Rating: Rated to operate reliably at 2000PSI, making it suitable for demanding high-pressure environments.
– Material Construction: Manufactured from stainless steel to resist corrosion and maintain hygienic conditions.
– Seal Integrity: Incorporates braided graphite/(FKM) Viton seals to address chemical exposure and pressure fluctuations.
– Mechanical Operation: The Scotch Yoke design minimizes moving parts, which simplifies maintenance and reduces wear over time.

Air Actuated High Pressure Ball Valves – Scotch Yoke (2 NPT) Specifications

The above product information is based on theoretical data and is for reference only. Actual specifications may vary.

Air Actuated High Pressure Ball Valves – Scotch Yoke (2 NPT) Applications

• Water Treatment: Applied to control flow and isolate sections in potable water systems with high-pressure requirements.
• Chemical Processing: Employed for managing fluid control in chemical pipelines where material compatibility is critical.
• Pharmaceutical Manufacturing: Utilized in sanitary setups to maintain process isolation and meet hygienic standards.
• Food and Beverage Production: Integrated into processing lines to uphold sanitary conditions and precise fluid management.
• Laboratory Systems: Deployed in high-pressure experimental setups requiring consistent and accurate fluid control.
