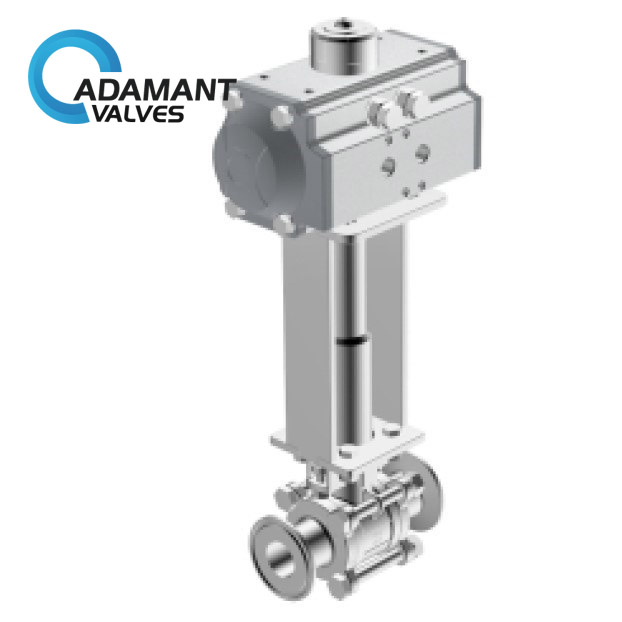

AV-2HT Sanitary Titanium High and Low Temperature Pneumatic Ball Valve

Availability : In stock

Size Range	DN15-DN200
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Connection	Clamp, welding, flange
Working Temp.	-20 to 160℃
Working pressure	PN16~PN100

Sanitary Titanium High and Low Temperature Pneumatic Ball Valve Description

Sanitary Titanium High and Low Temperature Pneumatic Ball Valve is used for on-off control of water, air, oil, etc. The bonnet of the Sanitary Titanium High and Low-Temperature Pneumatic Ball Valve adopts an extended design structure, and its purpose is to protect the function of the packing box so that the packing box is located far away from the cryogenic temperature to ensure the sealing effect of the packing. It is made of Titanium TA1/TA2. This field-proven and industry-preferred valve are better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Sanitary Titanium High and Low Temperature Pneumatic Ball Valve Specifications

Size Range	DN15-DN200
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Connection	Clamp, welding, flange
Working Temp.	-20 to 160℃
Working pressure	PN16~PN100

Sanitary Titanium High and Low-Temperature Pneumatic Ball Valve Applications

Sanitary Titanium High and Low-Temperature Pneumatic Ball Valve is Ideal where lead-free and NSF construction are required for potable drinking water as well as other industrial applications.
